Dot notation#

Overview#

Dot notation is used to reference macro functions, model attributes, defined variables, step references, and non-attribute values in the model schema.

Dot notation is a structured way to access:

  • Macro functions

  • Model attributes

  • Defined variables

  • Workflow steps

  • Non-attribute metadata

It is a pathing syntax that lets you drill into specific values or functions within the platform’s data models and templates.

Syntax patterns and usage#

  • fn.macrofunction_name

    Calls a macro function. See the Macro Functions section in the Advanced Configuration Guide.

  • self.attribute

    Refers to the current model’s attribute.

    Note

    attribute must be a valid attribute name of the calling model (typically within a configuration template).

  • previous.attribute

    Retrieves the previously saved value of an attribute. Useful when comparing against the current value during model updates.

  • input.attribute

    Identifies values provided via GUI input, bulk load, provisioning workflow foreach variable or context.

  • pwf.variablename

    References a variable defined in a provisioning workflow step.

  • cft.attribute

    Access values from the current context_var of a foreach loop within a configuration template.

  • modelname.attribute

    Defaults to referencing the data model type.

  • modeltype.modelname.attribute

    Used for non-data model types.

  • modeltype.modelname.attribute.NUMBER

    Refers to a specific indexed attribute (zero-based), referring to attribute NUMBER-1 where there is more than one attribute.

    Example: modeltype.modelname.attribute.0 accesses the first item. See section Macro examples. You can also use a wildcard:

    {# device.cucm.Phone.lines.line.\*.dirn #}

  • macro.name

    References a defined macro by name.

  • workflow.stepSTEPNUMBER.pkid

    Overrides the context hierarchy by specifying the pkid of a workflow step.

    Example: workflow.step2.pkid

Non-attribute notation#

These metadata (special) fields are used for hierarchy and identification and can be accessed using dot-notation:

  • __pkid

  • __bkey

  • __hierarchy

  • __hierarchy_friendly_path

  • __hierarchy_friendly_parent_path

Examples:

{# data.Countries.__pkid #}
{# data.CallManager.__bkey #}
{{ data.CallManager.__bkey | host:172.29.248.150 }}
{{ data.CallManager.__hierarchy | host:172.29.248.150 }}
{{ data.CallManager.__hierarchy_friendly_path | host:172.29.248.150 }}
{{ data.CallManager.__hierarchy_friendly_parent_path | host:172.29.248.150 }}

Including the unique ID for each instance of special fields

You can use a wildcard (*) appended to __pkid with any of the special (metadata) fields in a macro query to return all fields plus the unique identifier for each instance.

Examples:

  • {# data.Countries.*,__pkid #}

  • {# data.Countries.*,__pkid,__hierarchy_friendly_path,__hierarchy,__bkey #}

A unique ID is required for each instance when using a wildcard since it is not possible to rely on all fields to be unique. This is useful for overbuild workflows or any scenario requiring unique identification.

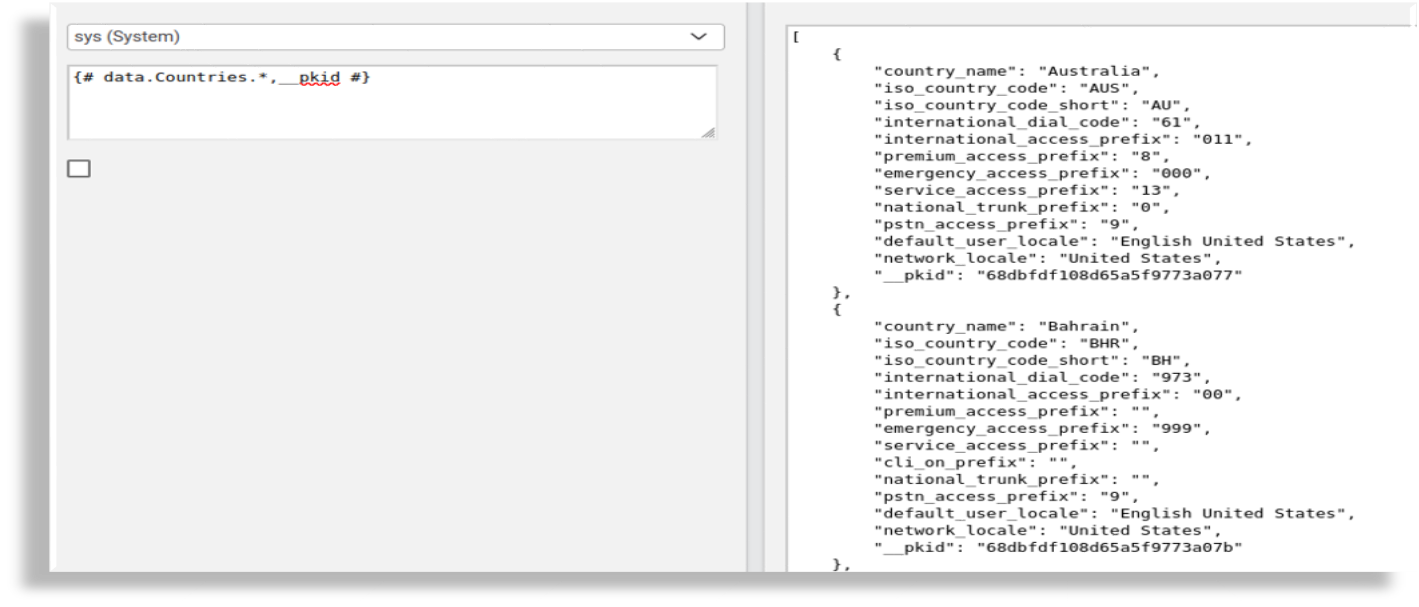

For example, macro {# data.Countries.*,__pkid #} returns all countries in the database, plus the pkid. This syntax ensures that the macro output includes all fields and the unique identifier for each instance.

{
     "country_name": "Australia",
     "iso_country_code": "AUS",
     "iso_country_code_short": "AU",
     "international_dial_code": "61",
     "international_access_prefix": "011",
     "premium_access_prefix": "8",
     "emergency_access_prefix": "000",
     "service_access_prefix": "13",
     "national_trunk_prefix": "0",
     "pstn_access_prefix": "9",
     "default_user_locale": "English United States",
     "network_locale": "United States",
     "__pkid": "63f7885cc33191b9204fa73e"
 },
../../_images/wildcard-with-pkid-macro-1.png

Combining hierarchy fields

The hierarchy fields can be combined with model attribute names in a comma separated list, for example:

{# data.Countries.country_name,__hierarchy,__hierarchy_friendly_path #}

Output snippet:

[
    {
        "country_name": "Australia",
        "__hierarchy": "58d303503f44d58341d61775",
        "__hierarchy_friendly_path": "hcs"
    },
    {
        "country_name": "Bahrain",
        "__hierarchy": "58d303503f44d58341d61775",
        "__hierarchy_friendly_path": "hcs"
    },

 ...

Note

Meta attribute properties can also be used in a macro filter. See Macro Syntax to Filter by Meta Properties.

Sequence and looping#

  • To indicate sequence instance with SEQ - the value is a loop sequence number starting from 1 or a wizard step number:

    • It is obtained from a Foreach List Macro in a provisioning workflow or a Foreach Elements loop in a configuration template.

      This value can be used to refer to an attribute of a model. An array item in a configuration template has a Foreach Elements loop with a variable phoneX:

      {# self.Phone.{{fn.subtract input.phoneX.SEQ,1}}.lines.line #}

      that refers to an attribute (line in a list of phones), starting with the first one:

      self.Phone.0.lines.line

    • This value can be used to refer to a Wizard step (stepSTEPNUMBER) in its configuration template. A Foreach Elements loop with a variable step that holds a list of STEPNUMBER obtained from the wizard:

      {# input.define_wizard_steps #}

      so that stepSTEPNUMBER can be incremented with:

      step{{cft.step.SEQ}}
