Move user & services#
Overview#
Use the Move User & Services page where there are existing Cisco UCM users at various sites, and then syncing in the Microsoft users at customer level. A check for mapping matches is carried out at site level to move the corresponding MS users down.
Important
Webex users and their services can’t be moved so options for moving a user are hidden on the page if you’ve selected a user enabled for Webex.
Prerequisites
Set the following Global Setting (Global settings) to True (enabled): Enable Cisco / Microsoft Hybrid
Note
The Move User & Services view (view/MultiVendorServiceUserMove_VIEW) supports execution
from Provider or Reseller hierarchy levels.
This enables multi-vendor and hybrid move workflows (including QAS-driven moves) to successfully move CUCM users imported at Provider or Reseller level down to a target site, without encountering hierarchy rule violations.
Rollback limitations for Hybrid / Multi Vendor Moves#
Hybrid and multi vendor move workflows have limited rollback support. When a multi vendor move fails, Cisco services roll back to the original site, but Microsoft services do not and remain at the destination site. Because the system does not retain the necessary prior configuration for Microsoft models (unlike Cisco CUCM-based services), Microsoft updates cannot be rolled back. Some move operations also do not generate rollback-supported steps, which prevents rollback from occurring. As a result, hybrid/multi vendor moves can leave the user split across sites if any part of the workflow fails.
Recent improvements increase rollback coverage in specific scenarios, but rollback is not guaranteed for all hybrid or multi vendor move operations.
Move scenarios#
All Cisco move functionality is available, including additional workflows for hybrid moves.
Supported scenarios are:
Scenario 1
Move MS Teams, MS 0365
Set tenantDialplan (optional), onlineVoiceRoutingPolicy (optional)
Move INI and E164 association (if it is in a 1-to-1 association) and create at new site with new country if different
Delete SNR at home site and Add SNR at new site
Set the INI at new site according to Service Type
Scenario 2
Move MS Teams, MS 0365
Set tenantDialplan (optional), onlineVoiceRoutingPolicy (optional)
Move INI
Delete SNR at home site and Add SNR at new site
Set the INI at new site according to Service Type
Scenario 3
Move MS Teams, MS 0365
Set tenantDialplan (optional), onlineVoiceRoutingPolicy (optional)
new INI at new site
Delete SNR at home site and Add SNR at new site
Set the INI at new site according to Service Type
Scenario 4
Move MS Teams, MS 0365
Set tenantDialplan (optional), onlineVoiceRoutingPolicy (optional)
new INI/E164 association at new site
Delete SNR at home site and Add SNR at new site
Set the INI at new site according to Service Type
Scenario 5
Move MS Teams, MS 0365
Set tenantDialplan (optional), onlineVoiceRoutingPolicy (optional)
Do nothing with lines, do not select anything in Lines tab - the assumption is that there was a bulk pre-move of lines to the new site: INI and/or INI/E164 numbers.
Delete SNR at home site and Add SNR at new site
Set the INI at new site according to Service Type
Scenario 6
If INI is associated to a range of E164s and there is an attempted move line, then this fails with workflow validation.
Note
From release 24.1, the Line Template drop-down under Line Configuration is not used by this feature. Any customizations (for example Field Display Policies) that referenced this field, should be updated to remove references to it.
If the user has any other Cisco services that were not added by the hybrid feature, such as Phone, EM, RDP, VM etc., these will be moved by the Cisco user move workflows during the Hybrid-Multivendor-Move calls.
If a Cisco CUCM user exists at the Customer level while the associated
data/Useralready exists at the destination site, VOSS automatically determines the correct source hierarchy and moves the CUCM user to the site as part of the Move User & Services operation.In Multi Vendor Service User Configuration, the New Role list of available roles will include those where the Hierarchies Allowed list of the role contains the target hierarchy selected in the Move To Hierarchy list. See: Role Management.
When moving a user that has Microsoft services, and the destination (move to) hierarchy has MS Teams site defaults (SDD) values set up for Online Voice Routing Policy or Tenant Dial Plan, these values are populated from the site defaults provided you’re not setting different values for Online Voice Routing Policy or Tenant Dial Plan in the Move user GUI. Values you set for these items in the Move user GUI thus take precedence over values set up in the site defaults when moving a user.
Related topics
Microsoft - Move user & services#
Automate allows you to move a non-hybrid, Microsoft-only user from one site to another site, with their services and a new line assigned.
You can do this in two ways:
Use the Move User & Services page in the Admin Portal
Use Flow through provisioning (FTP) along with a manual or scheduled sync to update a user in Automate that has been updated on the Microsoft cloud.
Number types supported for moving a Microsoft-only user site-to-site:
Direct routing
Operator Connect
Calling plan
Teams Phone Mobile
The table describes how Automate processes various workflow elements in Microsoft-only user move:
Element |
Description |
|---|---|
Lines |
The line can be moved along with the user, or assign a new line. If the number is shared, the “shared line policy” is removed prior to the move and re-assigned after the move. |
Policies |
Any policies previously assigned to the user that are not overwritten by the new site, remain unchanged. |
Licensing |
Licensing and usage location remain unchanged. If the user licenses don’t match the supported new number type, a system message warns you that the user can’t be moved. |
Enterprise Voice |
If Enterprise Voice is enabled at the source site and the target site is non-Enterprise Voice enabled, then Enterprise Voice is also disabled for the moved user at the target site. |
Failure handling |
If the target site does not support the move, the transaction fails with a descriptive error message. |
Related topics
Manually move a Microsoft user#
This procedure manually moves a Microsoft user from one site to another site, with their existing or new services, and a new line.
Prerequisites:
Ensure you have available lines at the target site. In this case, available lines for Microsoft users.
To apply settings for the target site via a user profile, ensure the user profile is correctly configured for the services the user requires at the target site.

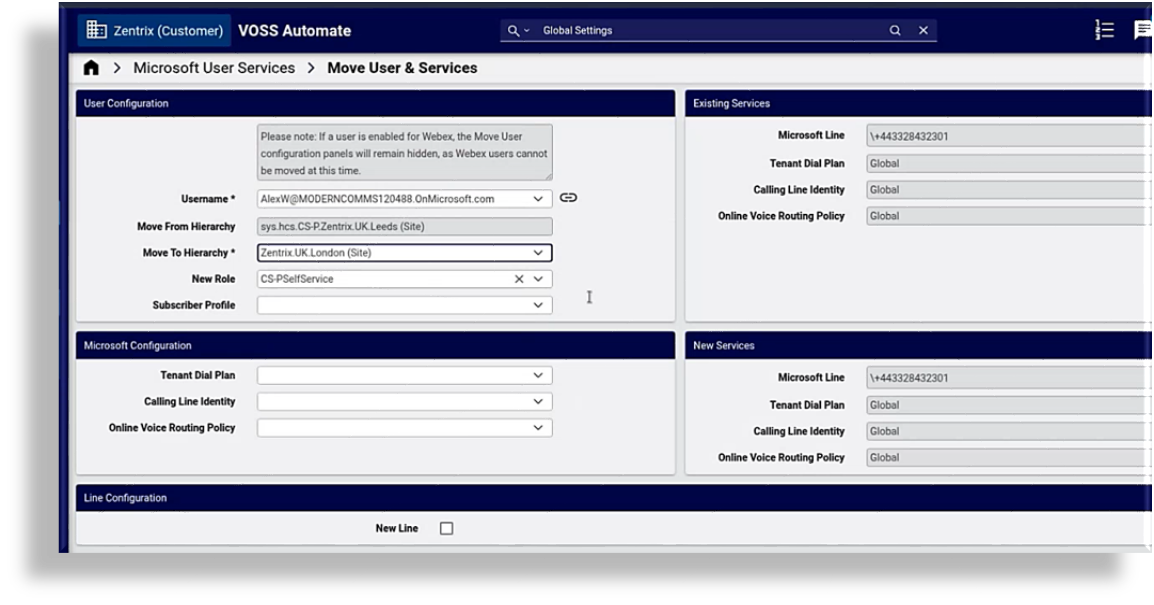

Move the user:
In the Admin Portal, go to Move User & Services.
Select a username to populate the page with the user’s details and existing services.
Select an option at Move to Hierarchy. Existing services populate on the page.
Optionally, select a user profile. The read-only New Services fields update with the services assigned via the user profile.
Note
Values you select in the fields on the Move User & Services page override any settings updated by the user profile settings (if you selected a user profile).
Using a user profile to move the user allows you to apply the relevant Quick Add Group, policies, and configuration templates to update the user at their new location.
If you don’t select a user profile, the user moves with their current settings, except for the line, since Automate either assigns the next available line at the new site, or you can choose a new line for the target site.
Optionally (valid for direct routing only), select a tenant dial plan, calling line identity, and an online voice routing policy.
Note
Values you select for these fields override values from the user profile for the new services.

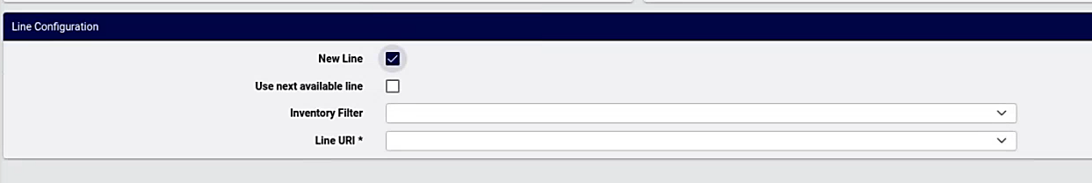

At Line Configuration:
Select New Line to create a new line at the target hierarchy, or leave the checkbox clear to use the existing line.
To have the system find the next available line, select Use next available line, and optionally, select Inventory Filter so that the system can choose a line from a predefined pool of filtered numbers to be assigned, for example, only unused numbers with associated E164s, or unused numbers at the site only.
Note
By default, Automate selects the next line available at the current site (checks locally first). If no lines are available at the current site, the system looks up the hierarchy to the customer level and if an available line is found, the read-only Microsoft Line field populates with the selected line.
Alternatively, manually select a line from the Line URI field, with or without a line inventory filter applied.
Note
The Line URI drop-down displays available lines for Microsoft users. No additional filtering is applied. The line you choose populates the New Line field at New Services.
Save your changes to move the user with their new services and line.
Related topics
Move Microsoft user using flow-through provisioning#
This procedure automatically moves an existing and already provisioned Microsoft user from one site to another site (the target site), with their existing or updated services (based on the user profile), and including a new number (line) at their new location.
Note
This scenario assumes the user’s location (for example, their city or other geographic location) has been updated on the Microsoft Cloud portal (Microsoft 365 admin center) and you want to sync in this user to Automate and automatically update their location and services for the site they’re moving to.
Configure model filter criteria for the Msoluser (Microsoft online user) for the target geographic location move.
Configure the site defaults.
Go to Defaults for the site. Verify the required model filter criteria is selected in the Move Filter Criteria pane (at the MS 365 User Model Filter Criteria drop-down).
Configure Global Settings.
Go to Global Settings, and select the Flow Through Provisioning tab/panel.
Set Enable Move & Provisioning after Update Sync to Yes (enabled) to allow the user to be provisioned and moved following a data sync.
Optionally, select an option at Flow Through Provisioning Criteria for the flow through provisioning criteria set up to move the user/users to their new location.
Sync in the user:
Execute manual sync:
In the Automate Admin Portal, go to the Microsoft Tenant list view, and open the configuration page for the relevant tenant. From the overflow menu, select Sync New Users.
Wait for scheduled sync:
You can sync in and move the user via the automatic, scheduled sync (and not manually via Sync New Users in the tenant settings).
When the sync runs (manual or scheduled sync), Automate syncs in the user, moves that user to the target site with their new services (line, policies) from the user profile. If the user profile is set up to send the user a welcome email, the user receives an email with their new location and service details.
