Role-based dashboards and menus#
Overview#
New installs of Automate ship with a collection of pre-defined, default roles and associated elements to deliver a set of experience-based layouts for the Automate user interface:
Automate also ships with these additional roles:
HcsAdmin - This role is defined for the user who logs in on first install to create a provider admin, and optionally, to create admin users for the other hierarchies (customer, site, reseller) out of the cloned default roles created when adding a provider. Alternatively, the newly created provider admin user can now log in to create the other admin users out of the cloned roles at the provider level, and can hand over further configuration of each hierarchy to the relevant admin users, or configure Automate for all hierarchies.
selfservice - This role is the default Self-service role, which is used only with the Self-service interface.
Microsoft-only roles - These roles ship with Automate 25.2, and while they’re based on the default, experience-based roles that shipped with Automate 25.1, as well as a new, license manager role, these roles aren’t enabled or assigned by default and are intended only as working examples for Microsoft-only deployments:
Automate - Admin - Microsoft Only
Automate - Service Desk - Microsoft Only
Automate - License Manager
For details, see Microsoft-only roles
Default roles
Each of the default Automate roles (Automate - Admin role, Automate - Service Desk role, Automate - Analyst role) is assigned a GUI layout, comprising a Home dashboard (landing page), and a set of predefined dashboards and menus offering access to features designed for their user experience. The role-based layouts follow best practices and serve as a starting point for common personas. While they offer a strong foundation, you should customize them to fit your needs - for example, you’ll be able to adjust actions and fields exposed via field display policies, customize naming conventions, and modify help text and descriptions to align with your user base. This ensures an optimized experience, reduces adoption challenges, and minimizes training requirements. Contact your account manager if you need guidance towards developing an operationally sustainable approach.
Roles are combined with a number of elements (such as permissions, menus, dashboards, access profiles, and themes) to define the look and feel of the system for particular user experiences. You can clone and customize the pre-built layouts to create custom layouts.
Note
Some menus and pages have been renamed in 25.1. It is recommended that you use the toolbar Search functionality to search for models, functionality, and other entities so that you won’t need to remember any particular menu paths. For example, to search for page by its name, use the Action search. Refer to Use the Action search to navigate Automate. For details on all the Global and Filter search, refer to Search in Automate
Hierarchy considerations
Automate’s default roles can typically be assigned to users at any level in the hierarchy to pair the role capabilities with a given scope. For example, a specific customer in a Provider environment, or specific sub-unit in a business for Enterprise.
Dashboards may need to be adjusted to reflect the appropriate hierarchy level. For example, change group from Customer, which is useful for Provider, to perhaps, by Site.
GUI layouts in earlier versions of Automate
Earlier versions of Automate (pre-25.1) shipped with three sets of pre-built menus:
Default menu layouts
Best practice menus (enhanced menus)
Menu layouts for a Business Admin role
Important
If you’re upgrading to Automate 25.1 from an earlier version, your GUI layout remains unchanged unless you choose to configure your role and access profiles to switch to the new GUI layouts.
Related topics
Automate - Admin role#
The Automate - Admin role is an experience designed for application administrators. This role provides broad access to setup, settings, and system actions. It serves as a model for advanced admins and offers insight into overall functionality.
Automate - Admin: Home dashboard#

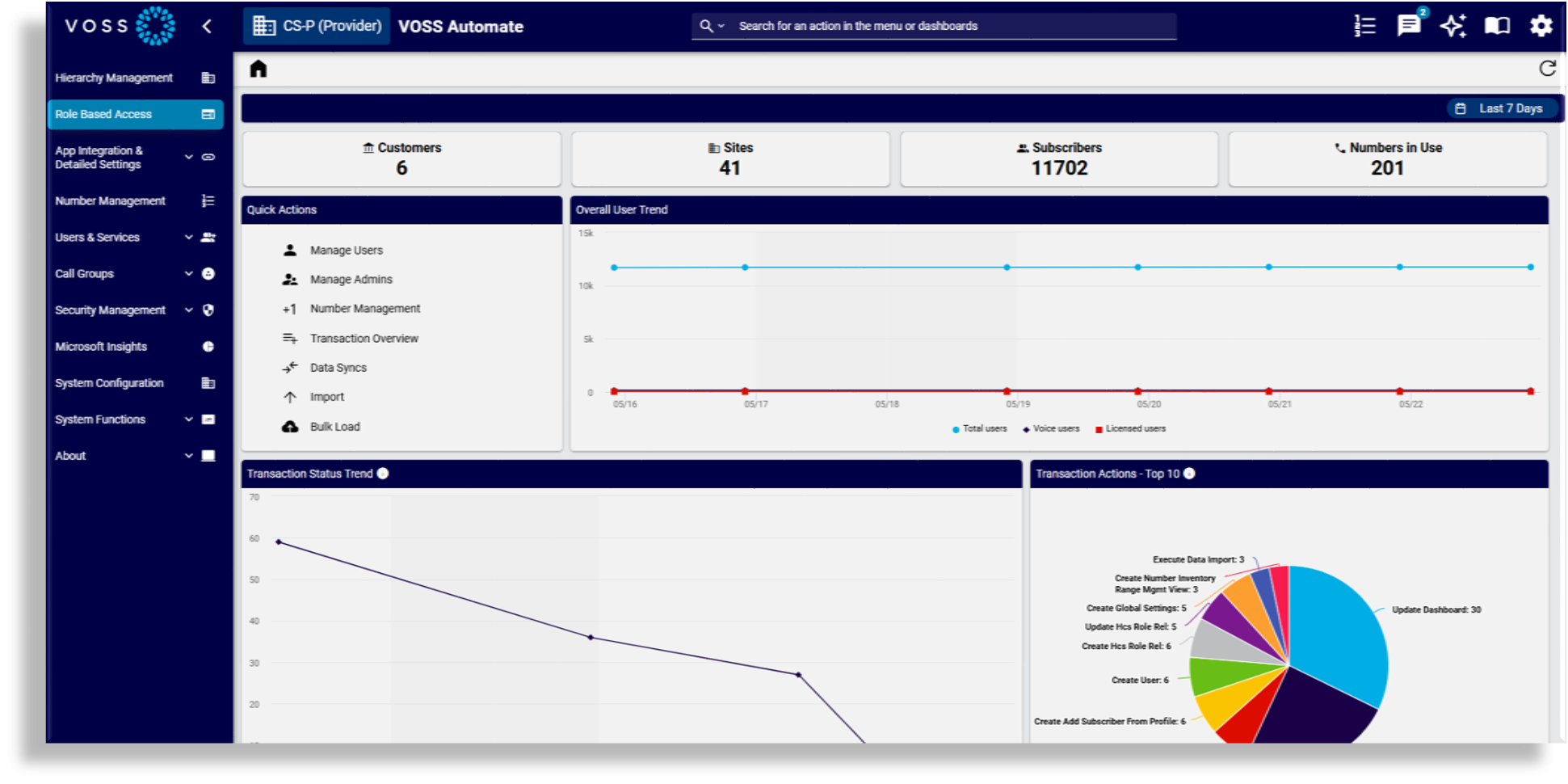

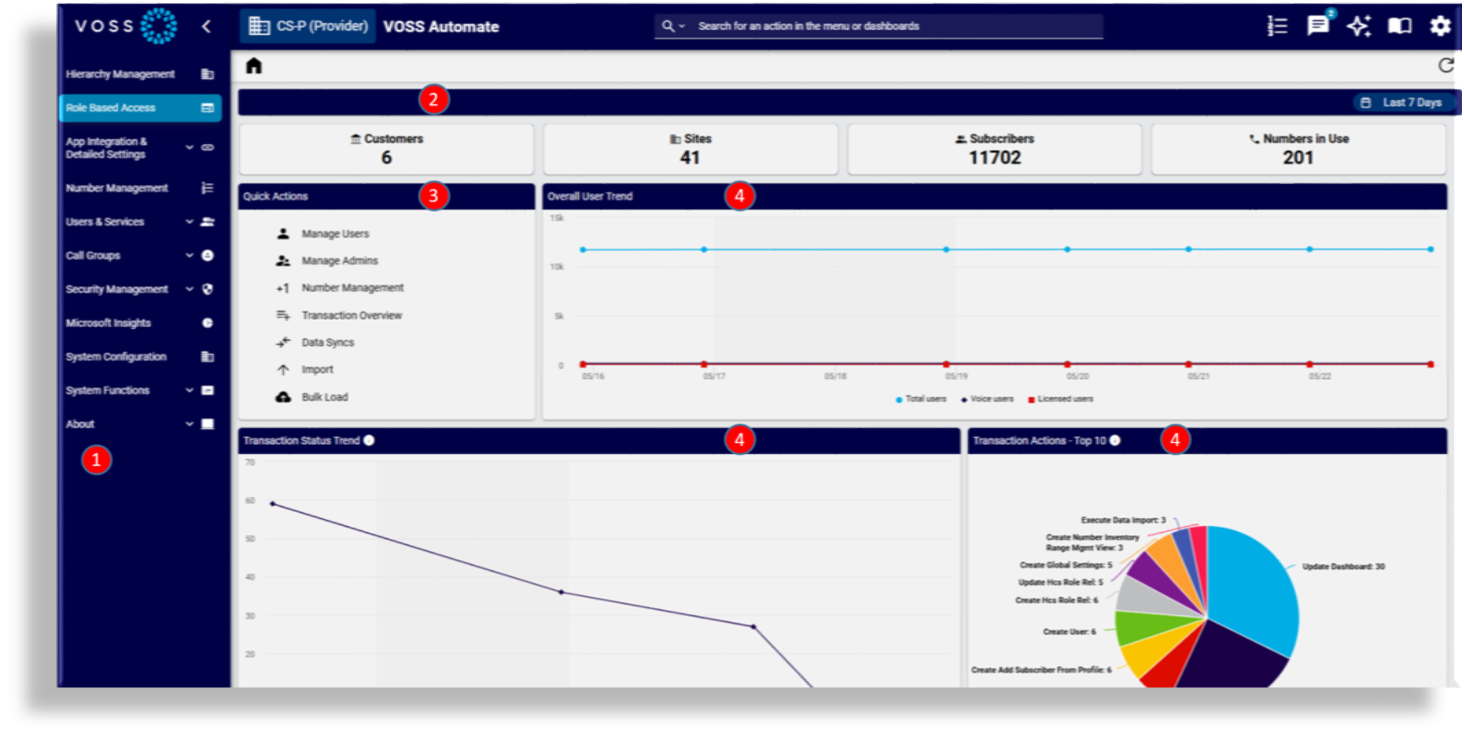

The Automate - Admin role’s Home dashboard is Automate - Admin Home, which displays a selection of counters, quick actions, and charts curated for the role.
Menu layout
Counters
Quick Actions
Charts
Automate - Admin GUI layout#
By default, the Automate - Admin role is assigned a theme, a Home dashboard, a menu layout, and an access profile, and is available for a selection of hierarchies:
Theme: default
Home dashboard: Automate Admin Home
Menu layout: Automate - Admin
Access profile: Automate - Admin
Hierarchies: Provider, Reseller, Customer, Hcs, Intermediate
Automate - Service Desk role#
The Automate - Service Desk role is an experience tailored for users performing typical, day to day system operations, including set up and configuration, and requiring access to data for troubleshooting and other operational tasks. This role is suitable for help desk/service desk users, delegated administrators in Provider environments, or business sub-units in enterprises.
Automate - Service Desk: Home dashboard#
The Automate - Service Desk role’s Home dashboard is Automate - Admin Home, which displays a selection of counters, quick actions, and charts curated for the role.
Menu layout
Counters
Quick Actions
Charts
Automate - Service Desk GUI layout#
By default, the Automate - Service Desk role is assigned a theme, a Home dashboard, a menu layout, and an access profile, and is available for a selection of hierarchies:
Theme: default
Home dashboard: Automate - Admin Home
Menu layout: Automate - Service Desk
Access profile: Automate - Service Desk
Hierarchies: Provider, Reseller, Customer, Hcs, Intermediate, Site
Automate - Analyst role#
The Automate - Analyst role is an experience intended for users who need system visibility without making changes. It enables access to data for consuming dashboards, for performing searches, and for completing other analytical tasks, and is designed for stakeholders that need visibility of key metrics and information while offering more dynamic insights than traditionally static reports.
Automate - Analyst: Home dashboard#

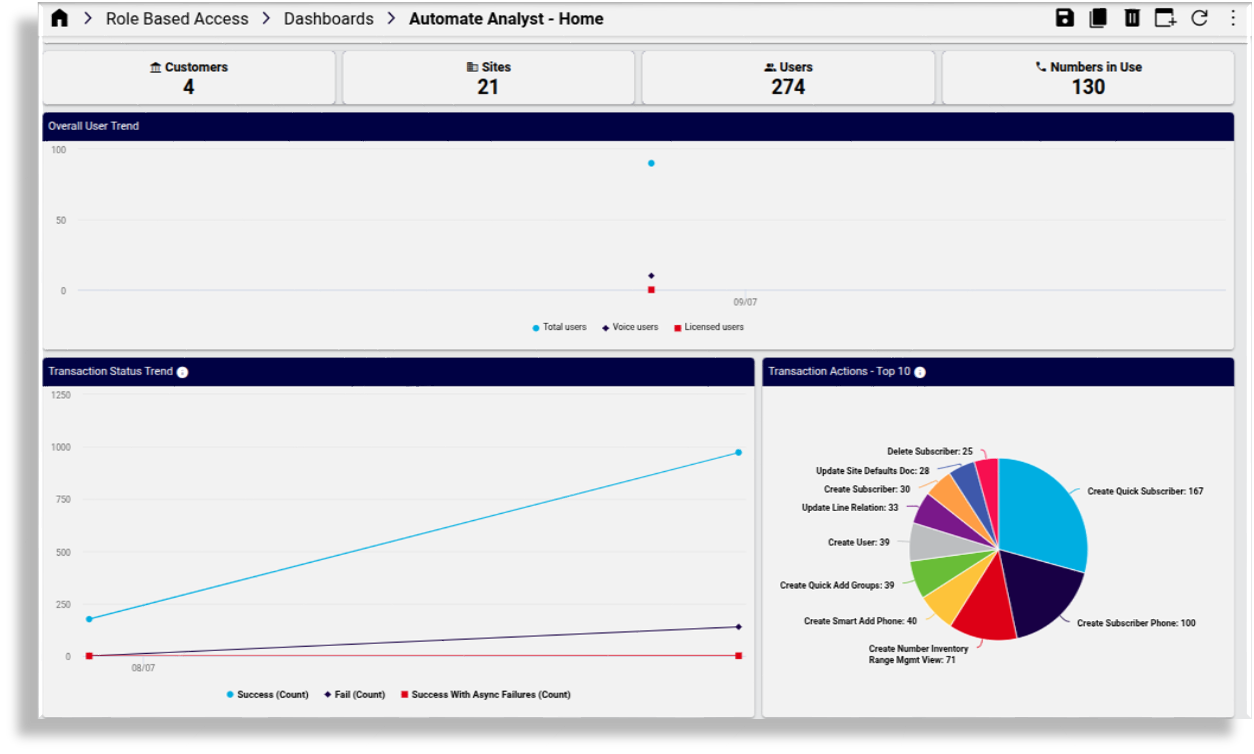

The Automate - Analyst role’s Home dashboard is Automate - Analyst Home, which displays a selection of counters, quick actions, and charts curated for the role.
Menu layout
Counters
Charts
Automate - Analyst GUI layout#
The default GUI layout for the Automate - Analyst role is assigned the following:
Theme: default
Home dashboard: Automate Analyst - Home
Menu layout: Automate - Analyst
Access profile: Automate - Analyst
Hierarchies: Provider, Reseller, Customer, Intermediate, Site
Microsoft-only roles#
The Microsoft-only roles are based on the experience-based roles that ship with Automate and are intended as working examples for Microsoft-only deployments:
You can use Automate’s customization tools to further refine these dashboards so that they are optimized for use cases in your organization:
Automate - Admin - Microsoft Only#
The Automate - Admin - Microsoft Only role ships with menus and dashboards customized for a Microsoft-only environment:
Menu layout: Automate - Admin - Microsoft Only
Theme: default
Access profile: Automate - Admin
Home dashboard: Automate - Microsoft - Home
Permitted hierarchy types: Provider, reseller, customer
Role settings: Automate - Admin - Microsoft Only

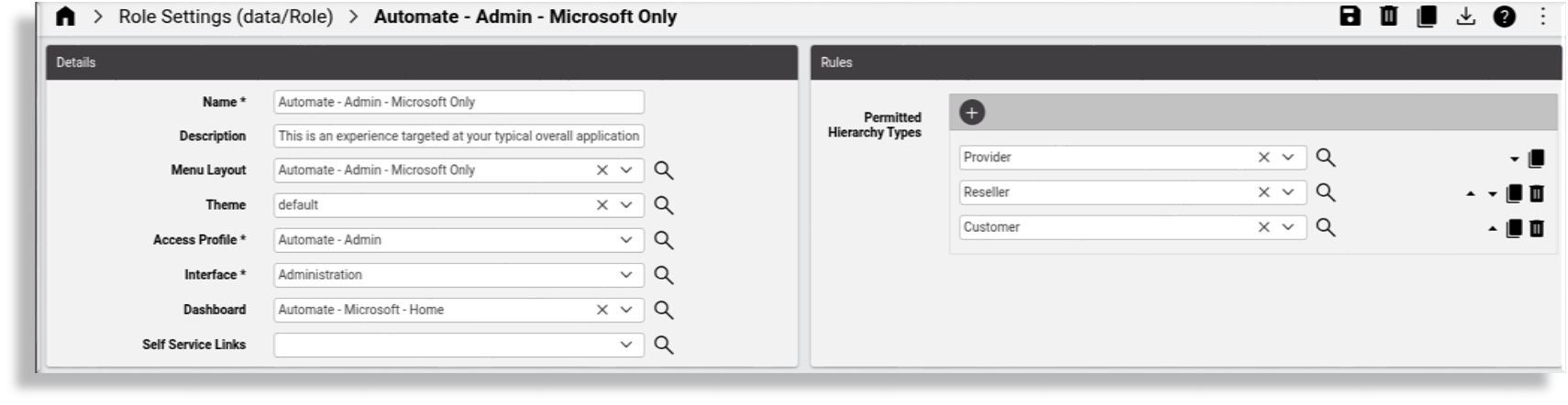

The image displays the settings for the Automate - Admin - Microsoft Only role:
Home dashboard: Automate - Admin - Microsoft Only

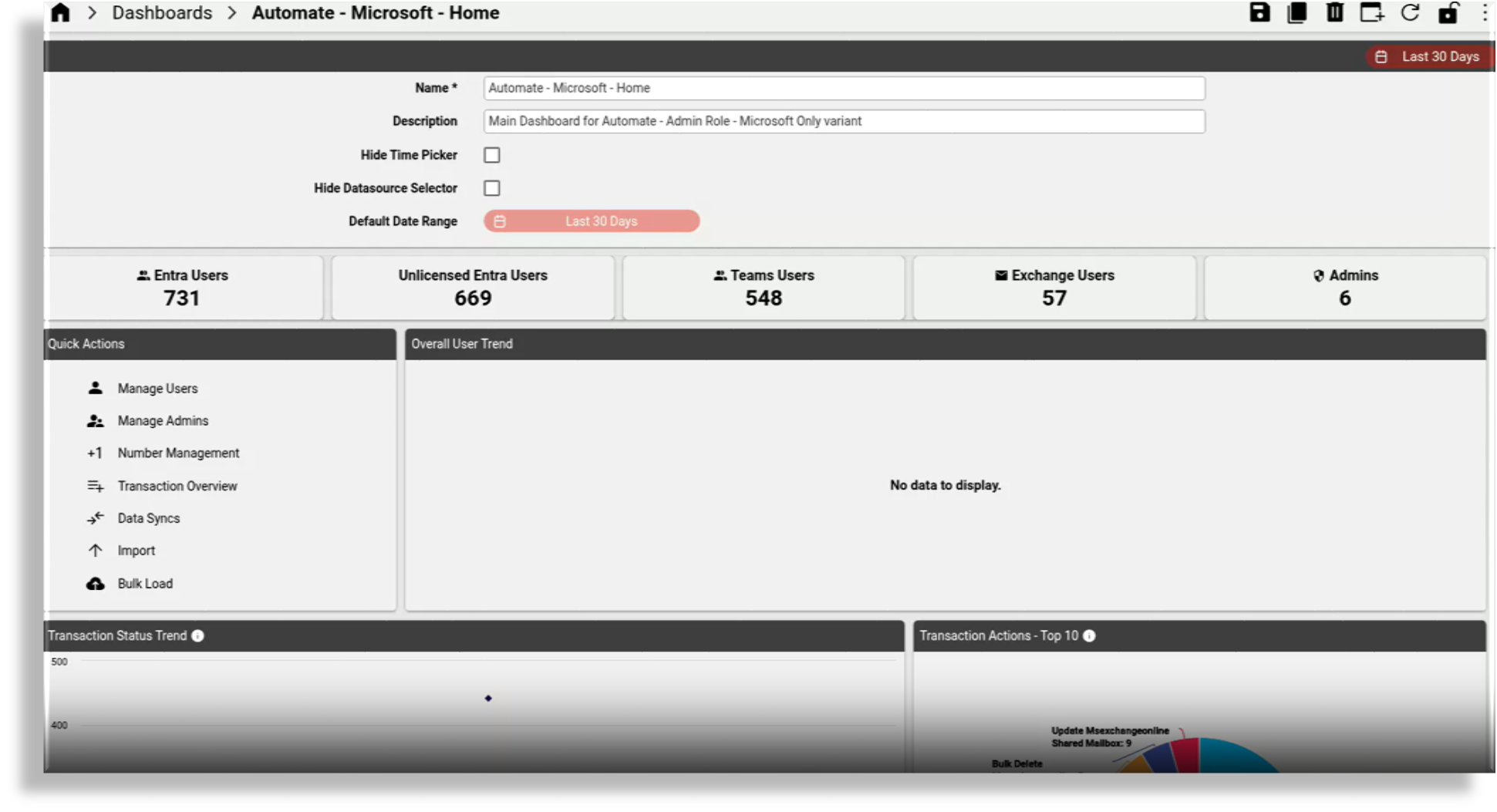

The image displays the Home dashboard for the Automate - Microsoft Only role:
Menu layout: Automate - Admin - Microsoft Only

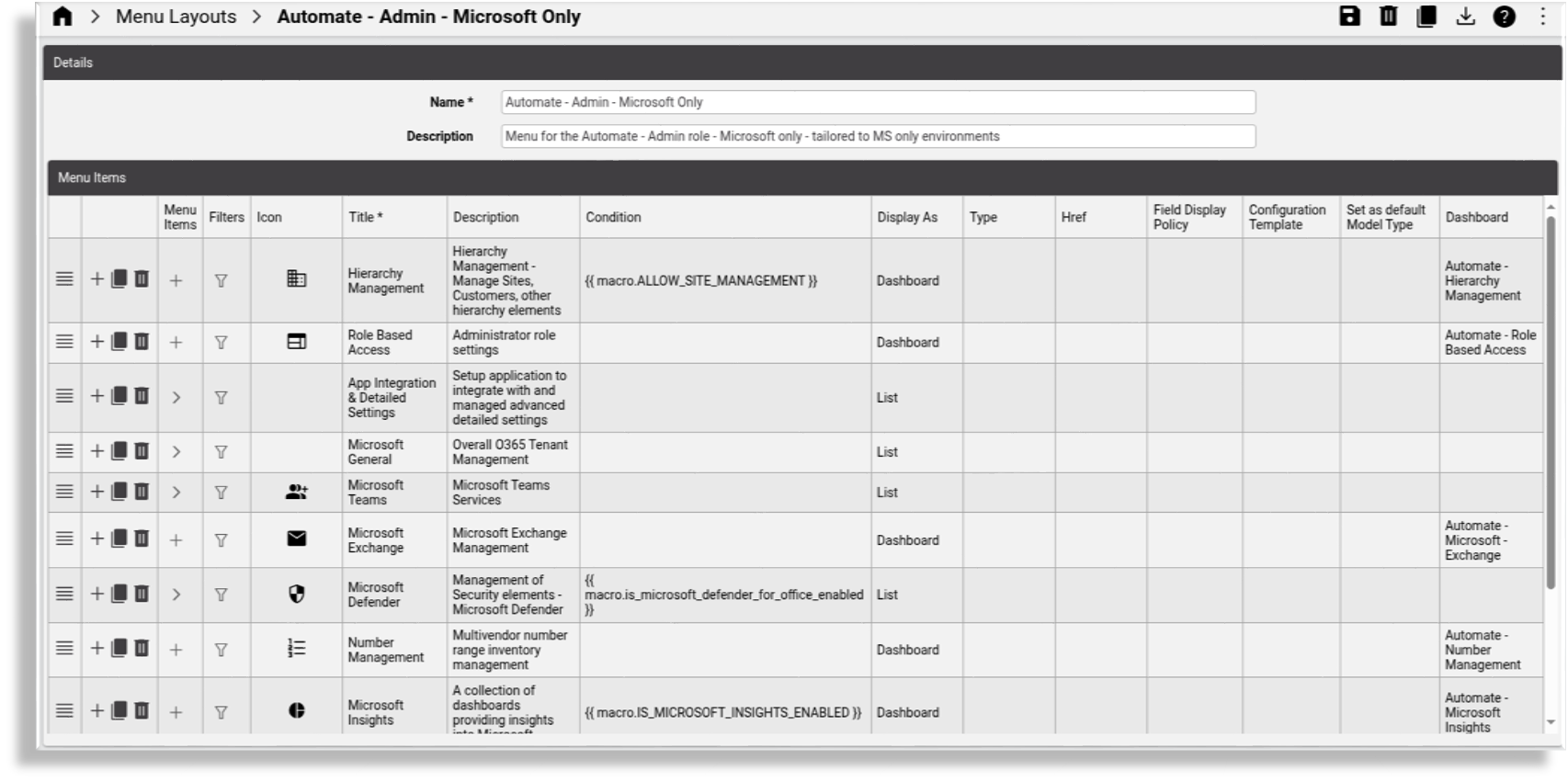

The image displays the menu layout settings for the Automate - Admin - Microsoft Only role:
The menu layout for the Automate - Admin - Microsoft Only Only role ships with these pre-defined dashboards and menus:
Hierarchy Management - this dashboard allows management of sites, customers, and other hierarchy elements
Role Based Access - this dashboard allows access to administrator role settings
App Integration & Detailed Settings - a menu providing access to a collection of dashboards to allow setup of the application for integration and for managing advanced and detailed settings:
Microsoft Overview - a dashboard for general Microsoft tenant settings and management
SBC Configuration - a dashboard for setup and management of SBC and related elements
Additional Apps - a dashboard for additional app integration setup and detailed configuration, for example, LDAP
Data Sync Management - a dashboard for managing data sync setup and schedules
Dialplan Tools - a dashboard for managing and using dialplan orchestration tools
Microsoft General - this menu provides access to a collection of dashboards for overall 0365 tenant management:
Tenant Setup - a dashboard for general Microsoft tenant settings and management
License Management - a dashboard for managing Microsoft licenses, including inventory, allocations, and assignment
License Analysis - a dashboard for Microsoft license analysis for license managers
User Overview - a dashboard providing a general overview of user services across the Microsoft stack
User Details - a dashboard providing detailed user reports for services across the Microsoft stack, and trend analysis
Microsoft Teams - a menu with a collection of dashboards for managing Microsoft Teams services:
Detailed Configuration - a dashboard for managing detailed technical Microsoft tenant settings
User Management - a dashboard for managing Microsoft Teams users and related settings
Call Groups - a dashboard for managing Microsoft Teams call groups (auto attendant, call queues), and related setup
Microsoft Exchange - a dashboard for managing Microsoft Exchange
Microsoft Defender - a menu providing access to a collection of dashboards for managing Microsoft security elements:
Defender for Office Overview - a dashboard providing an overview for Defender for Office email capabilities ( quarantine email, safe links, safe attachment policies)
Defender for Office Actions - a dashboard providing links to management actions for Defender for Office email capabilities (quarantine email, safe links, safe attachment policies)
Number Management - a dashboard for managing multi vendor number range inventory
Microsoft Insights - a dashboard comprising links to a further collection of dashboards delivering insights into Microsoft
System Functions - a menu providing access to a collection of dashboards for administration and associated support functions:
Transaction Overview - a dashboard providing an overview of key transaction metrics
Tools - a dashboard providing access to admin support tools, such as import, bulk loader, auditing, and logging
About - a menu providing access to forms providing information on the system software installation:
Version
Patches
Adaptations
License
License Counts
Dashboards: Automate - Admin - Microsoft Only
This section provides some examples of the dashboards that ship with the Automate - Admin - Microsoft Only role.

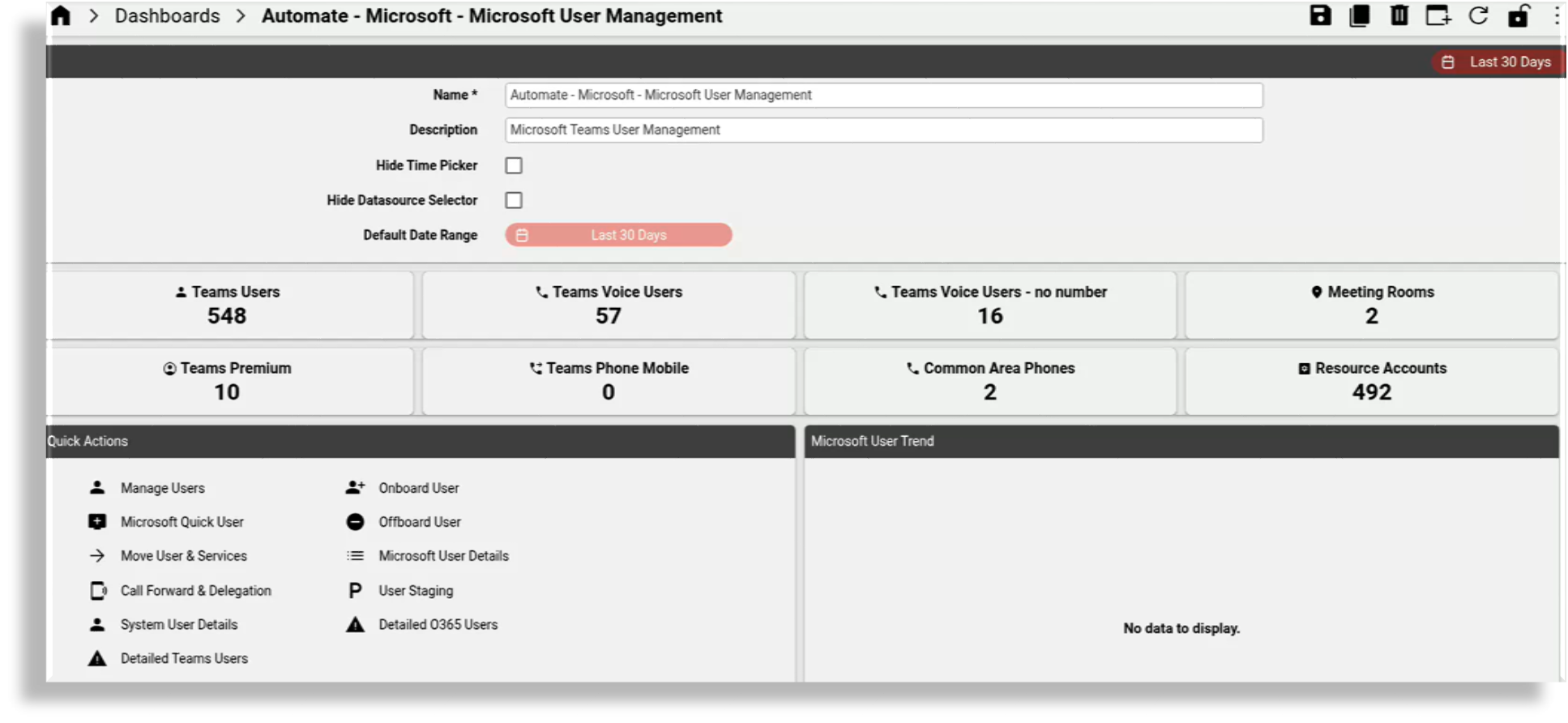

The image displays the Microsoft-only Microsoft User Management dashboard that ships with Automate:

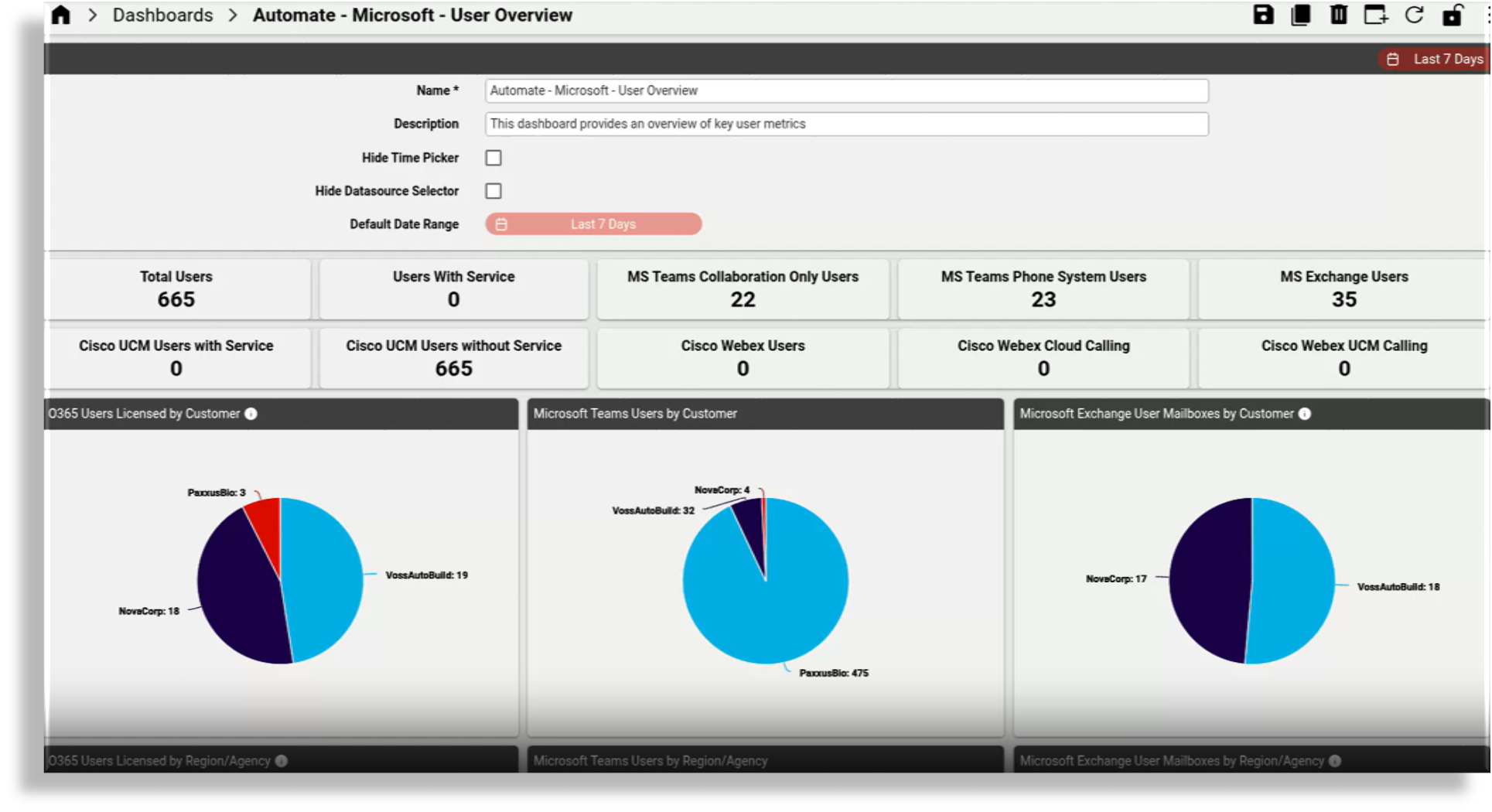

The image displays the Microsoft-only Microsoft User Overview dashboard that ships with Automate:

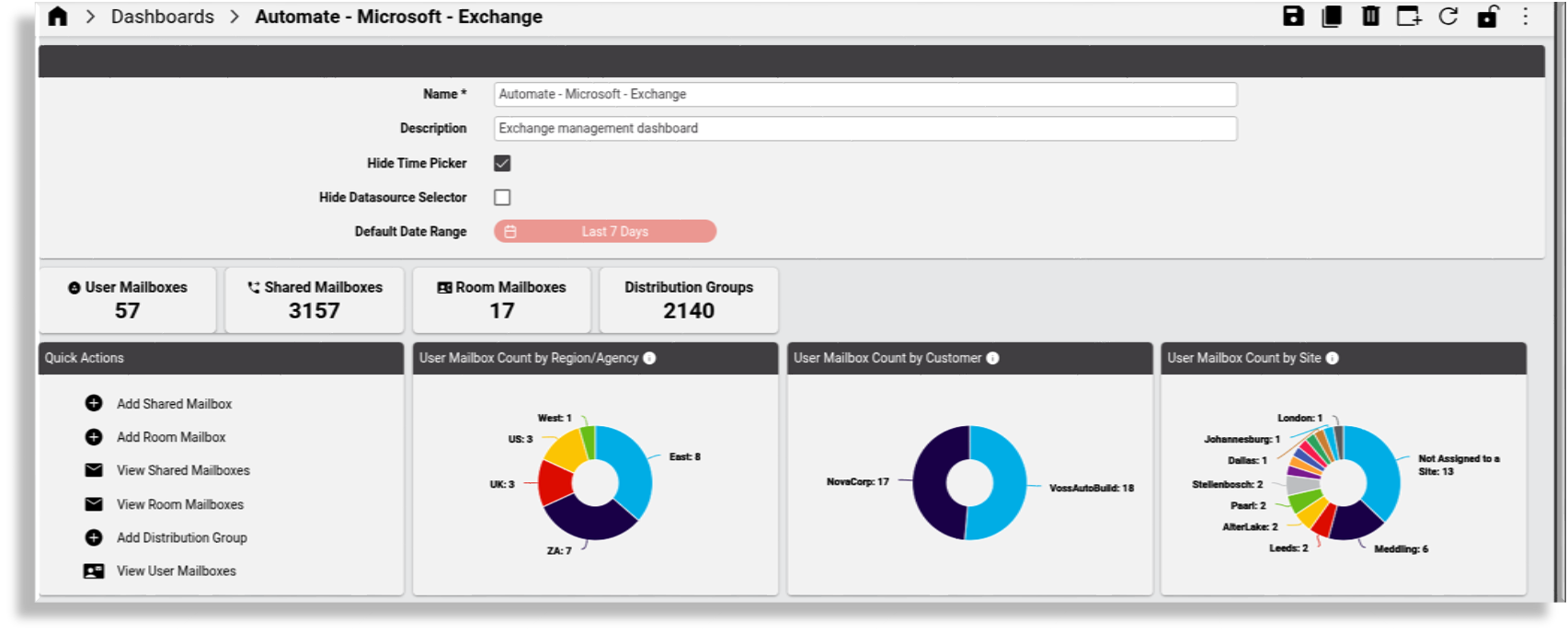

The image displays the Microsoft-only Microsoft Exchange dashboard that ships with Automate:
Automate - Service Desk - Microsoft Only#
The Automate - Service Desk - Microsoft Only role ships with menus and dashboards customized for a Microsoft-only environment:
Menu layout: Automate - Service Desk - Microsoft Only
Theme: default
Access profile: Automate - Service Desk
Home dashboard: Automate - Microsoft - Home
Permitted hierarchy types: Provider, reseller, customer, intermediate node, site
Role settings: Automate - Service Desk - Microsoft Only

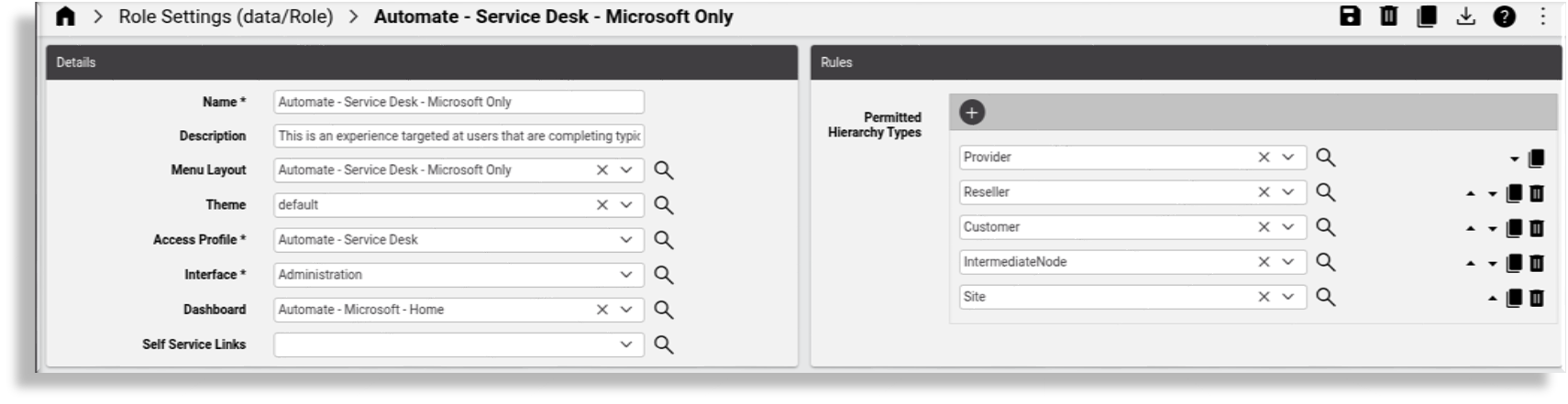

The image displays the settings for the Automate - Service Desk - Microsoft Only role:
Menu layout: Automate - Service Desk - Microsoft Only

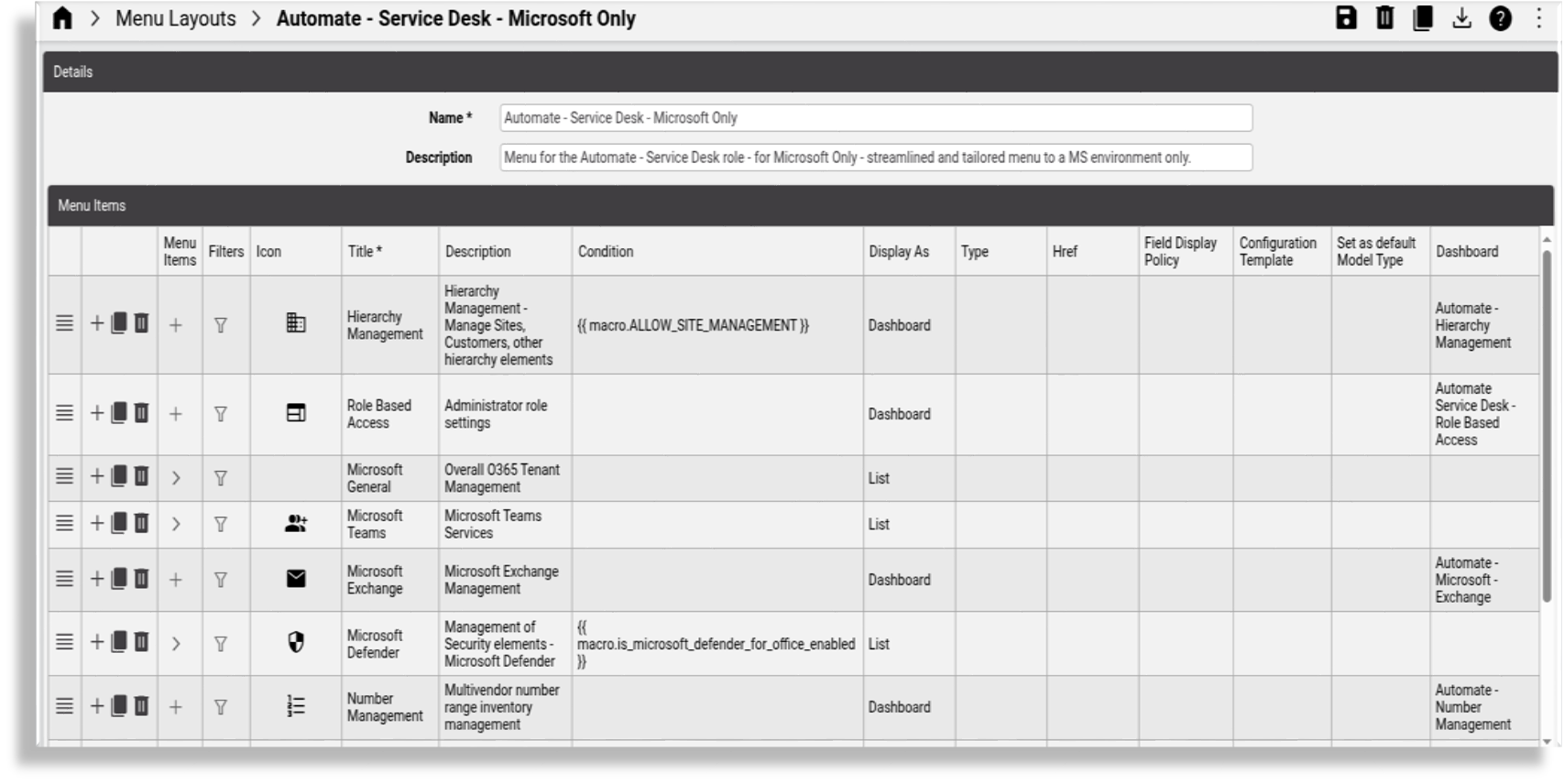

The image displays the menu layout settings for the Automate - Service Desk - Microsoft Only role:
The menu layout for the Automate - Service Desk - Microsoft Only role ships with these pre-defined dashboards and menus:
Hierarchy Management - this dashboard allows management of sites, customers, and other hierarchy elements
Role Based Access - this dashboard allows access to administrator role settings
Microsoft General - this menu provides access to a collection of dashboards for overall 0365 tenant management:
Tenant Setup - a dashboard for general Microsoft tenant settings and management
License Management - a dashboard for managing Microsoft licenses, including inventory, allocations, and assignment
License Analysis - a dashboard for Microsoft license analysis for license managers
User Overview - a dashboard providing a general overview of user services across the Microsoft stack
User Details - a dashboard providing detailed user reports for services across the Microsoft stack, and trend analysis
Microsoft Teams - a menu with a collection of dashboards for managing Microsoft Teams services:
Detailed Configuration - a dashboard for managing detailed technical Microsoft tenant settings
User Management - a dashboard for managing Microsoft Teams users and related settings
Call Groups - a dashboard for managing Microsoft Teams call groups (auto attendant, call queues), and related setup
Microsoft Exchange - a dashboard for managing Microsoft Exchange
Microsoft Defender - a menu providing access to a collection of dashboards for managing Microsoft security elements:
Defender for Office Overview - a dashboard providing an overview for Defender for Office email capabilities ( quarantine email, safe links, safe attachment policies)
Defender for Office Actions - a dashboard providing links to management actions for Defender for Office email capabilities (quarantine email, safe links, safe attachment policies)
Number Management - a dashboard for managing multi vendor number range inventory
Microsoft Insights - a dashboard comprising links to a further collection of dashboards delivering insights into Microsoft
System Functions - a menu providing access to a collection of dashboards for administration and associated support functions:
Transaction Overview - a dashboard providing an overview of key transaction metrics
Tools - a dashboard providing access to admin support tools, such as import, bulk loader, auditing, and logging
About - a menu providing access to forms providing information on the system software installation:
Version
License Counts
Automate - License Manager#
The Automate - License Manager role ships with menus and dashboards focusing on managing licenses and allocations for a license manager persona in a Microsoft-only environment:
Menu layout: Automate - License Manager
Theme: default
Access profile: HcsFullAccessAP
Home dashboard: Automate - Microsoft - License Management
Permitted hierarchy types: Customer
Role settings: Automate - License Manager

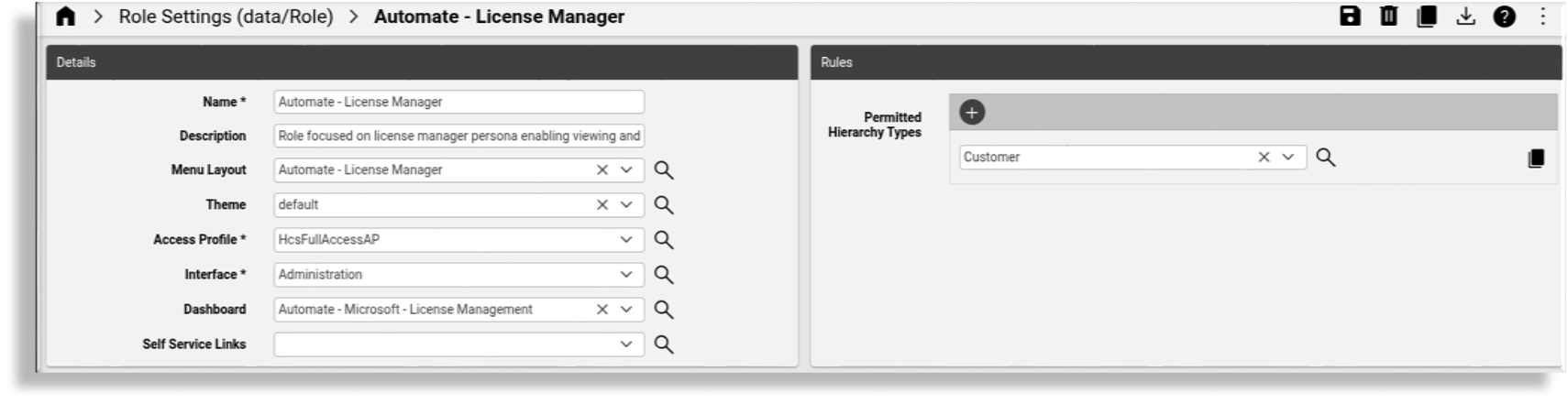

The image displays the settings for the Automate - License Manager role:
Menu layout: Automate - License Manager

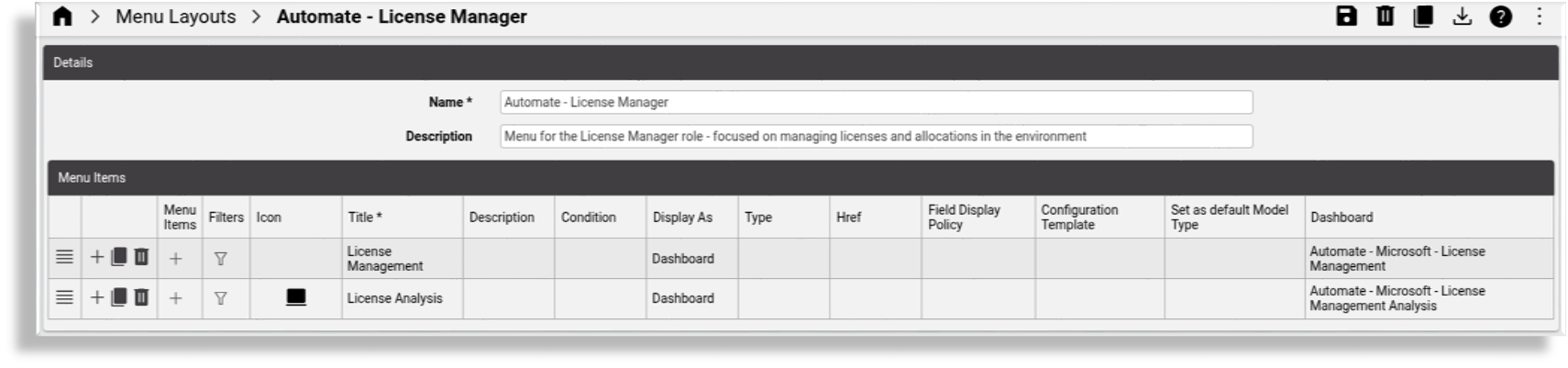

The image displays the menu layout settings for the Automate - License Manager role:
Dashboards: Automate - License Manager
The Automate - License Manager role ships with a menu with two pre-defined dashboards:
Automate - License Manager: A menu providing access to two dashboards for managing licenses and license allocation in the environment:
License Management - a dashboard for managing licenses
License Analysis - a dashboard for analyzing licenses in your environment

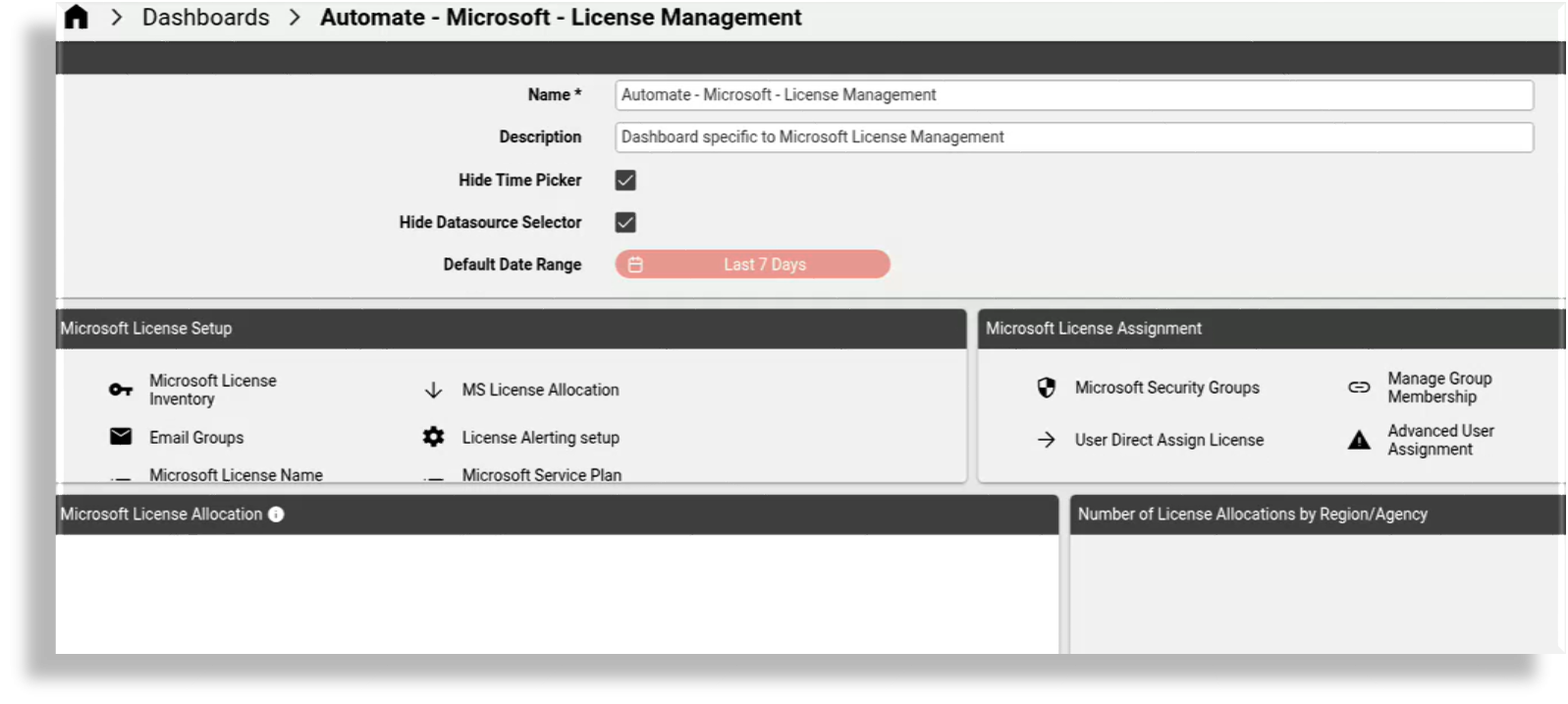

The image displays the Microsoft-only License Management dashboard that ships with Automate:

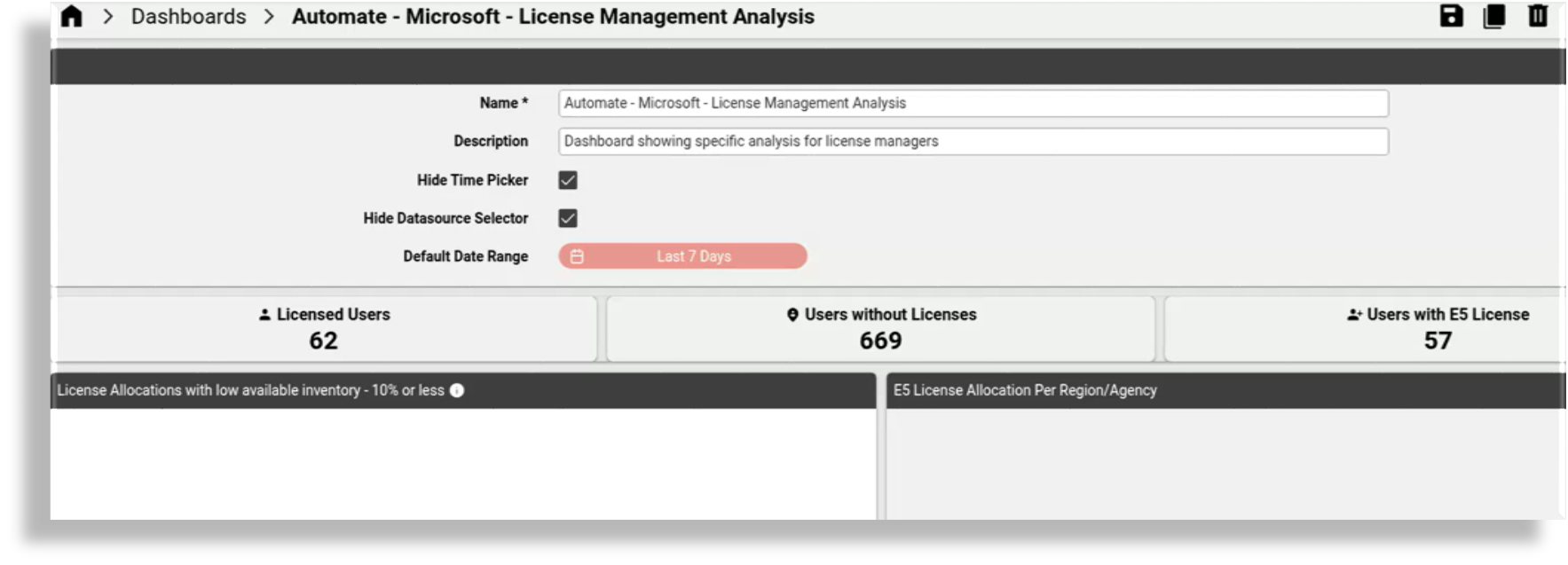

The image displays the Microsoft-only License Analysis dashboard that ships with Automate:
