Quick add user provisioning workflow structure#

The Quick Add User functionality uses a view model to define its schema that also ultimately defines:

  • The form fields a user sees in the GUI

  • The column headings in the Quick Add User bulk loader sheet

  • The attributes supported by the API endpoint (view/QuickSubscriber)

This view schema represents a simplified version of all possible user fields.

Associated with the view is a Provisioning Workflow (PWF) called AddQuickSubscriber, which captures these simplified fields and combines or maps them into the various components (services) of a full user. The main purpose of this workflow is to execute an “Add relation/Subscriber” operation.

The “Add relation/Subscriber” operation in turn executes a second PWF called AddSubscriberNew, which separates out the data for each user component or service and executes an “Add” operation on the corresponding device models, for example on device/cucm/Phone.

It is inside this AddSubscriberNew workflow that the configuration templates of the selected Quick Add Group is evaluated.

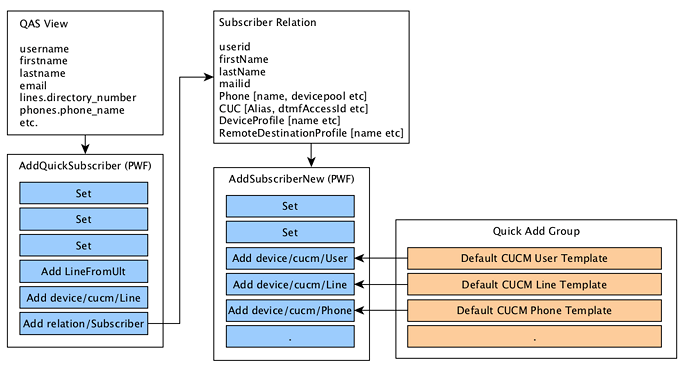

QAS-flow-img

Since the Quick Add Group configuration templates (CFTs) are evaluated inside the AddSubscriberNew workflow, it is important that the user relation field names not be those of the Quick Add User view. Generally, all field values are made available to an executing PWF and is referred to as the context.

For example, refer to the diagram and notice the difference in field (attribute) naming between the Quick Add User view and the user relation schemas, for example username as opposed to userid. The difference is subtle, but very important: the user name in the Quick Add User workflow context (AddQuickSubscriber) is username, but in the user relation workflow context (AddSubscriberNew) it is userid.
