Manage dashboards and widgets

Manage dashboards and widgets#

Tip

Use the Action search to navigate Automate

Overview#

Administrators can manage dashboards via the Dashboards link that is a part of the Role Configuration on the Role Management dashboard.

Add or edit a dashboard#

Automate provides several configuration options for working with dashboards.

Add or edit

Name: Display name of the dashboard
Description: Provide a description for the dashboard for the Dashboards list view.

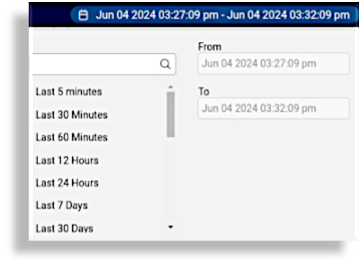

Hide Time Picker: By default, a time picker is available to filter dashboard data by start and end date. Any selected dates are reset when you log out. You can’t specify a date in the future. Select the checkbox to hide the time picker.
Hide Datasource Selector: This setting applies in the case where multiple instances of a dashboard data type is available. Not enabling the setting on a widget allows for selection of a data source instance and updates widget data based on the selected data source. Enabling the setting implies that the data source set on the widget is always used. Also used with “Insights Netflow” deployment option. For details, contact VOSS.
Default Date Range: Select this option to open the date range picker and to set up a default date range for the dashboard. This range will then apply to widgets on the dashboard that use the date range picker.
Clone: Use the toolbar Clone icon to create a copy of the dashboard you’re viewing. The cloned dashboard opens with the breadcrumb name appended with the text, [CLONE], and contains all the widgets of the source dashboard. The cloned dashboard name is the same as the original source dashboard name and can be modified as required.

Note

Dashboards with the same name can be available at different hierarchies. When such a dashboard is referenced, this first one found higher up from the administrator user’s login hierarchy is selected.

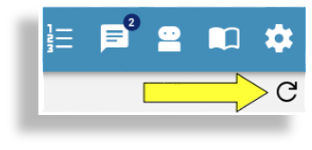

Refresh Dashboard: Used to update synced data on the dashboard to reflect any system data changes.

Note

Dashboard widgets each also provide a similar Refresh button when hovering over the top bar of the widget - similarly to refresh individual widget data.
Lock: Used to lock the arrangement of widgets
Dashboard Settings: Toggles (shows/hides) the dashboard name, description, and properties.
Undo: Reverts the dashboard to the state of the last unlock. So, if the lock has been used even once on the dashboard, the unlock will always return the dashboard to the state it was after it was unlocked, even if multiple changes were done since. If the dashboard was never locked, Undo will lock it, forcing the user to unlock and create a snapshot point. This snapshot is the same as the uploaded dashboard. Note that the Undo functionality is currently under review.
Export: Exports one or more instances. Refer to Bulk export of model data. Exported dashboards can then be modified and imported at a required hierarchy via the Import menu.
Compact Grid: Automatically optimizes the arrangement of widgets on the dashboard, given their current size.
Paste Widget: Pastes a widget you have selected, using the Copy Widget option on the widget menu, into the current dashboard. This allows you to copy widgets between dashboards.
JSON Edit: Used for editing the dashboard data in JSON. For details, refer to Manage items.
Export Dashboard Data: Used to export the data available in the widgets of a dashboard: in CSV or MS Excel format. The exported data contain header rows labelled with the friendly names of the data field names and is then available for off-line use.

Where multiple widgets are available on a dashboard, widget data is exported as either a CSV file or as a sheet in a MS Excel workbook. All the CSV files are archived in a .zip file. The export filenames follow the following convention:

Export_<dashboard-name>_data_<all|displayed>_<timestamp>.<zip|xlsx>

The available export options are determinded by the Data Source of the widgets on the selected dashboard:
- If there is a widget with Data Source as Automate present, only two export options will be available:
  - CSV - Displayed records
  - Excel - Displayed records
  This means that exported data will reflect the displayed records as per current Time Picker interval.
- If all widgets have Data Source set to Automate Analyzed , Netflow or Assurance, there will be four export options:
  - CSV - Displayed records
  - CSV - All records
  - Excel - Displayed records
  - Excel - All records
  Selecting an “All records” option will include all available data, regardless of the selected Time Picker interval.

Add or edit widgets#

When a dashboard is added or updated, widgets can be added, removed or edited.

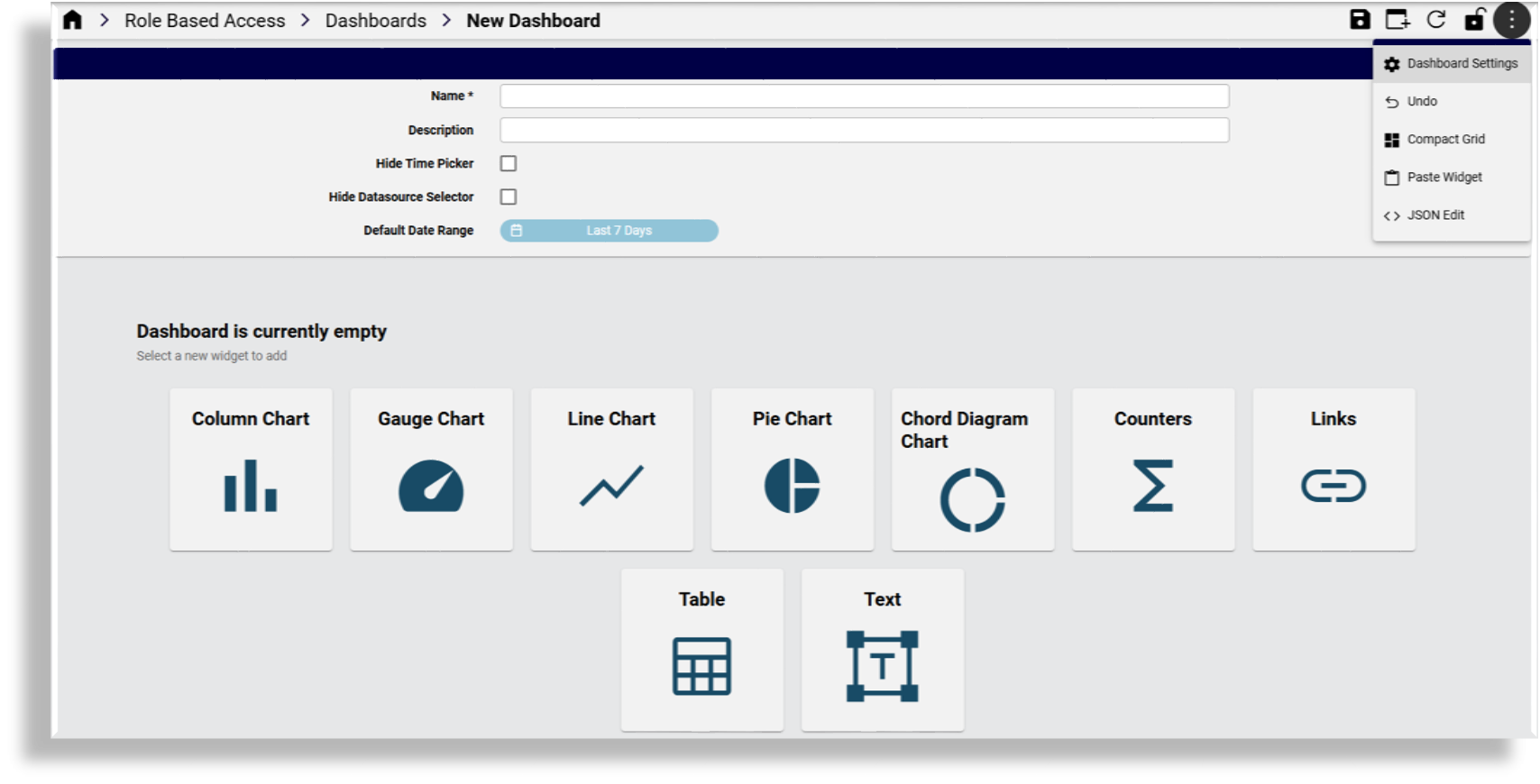

To add a widget, click the Add Widget toolbar icon; then, on the design form, either select the widget from the toolbar or from the provided list of icons:

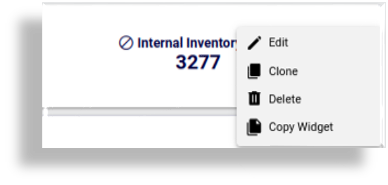

To edit a widget on a dashboard, select the dashboard from the list and choose Edit from the widget’s menu. The widget menu provides a number of operations.

../../_images/dashboard-widget-edit-menu.png

Edit:
- Use the Edit icon from the widget menu to edit the current widget. refer to the details below on available edit options.
Clone:
- Use the Clone icon from widget menu to clone the widget on the dashboard. The clone can then be edited as required.
Delete:
- Use the Delete icon from the widget menu to remove the widget from the dashboard.
Copy Widget:
- Use the Copy Widget icon to copy the current widget in order to paste it into a dashboard using the dashboard Paste Widget menu item.
Export data:

Where a widget offers data in a compatible format, the Export data on the widget menu allows for a MS-Excel or comma-separated value (CSV) export to a file, as in the Number Status example below:
```
Status,Count
Used-Utility,6
Cooling,35
Used,63
Reserved,106
Available,3850
```
Note
- For widgets where the Resource is an Insights resource, the option to export All Records is not available.
- For 24.2 installations where the “Insights Netflow” deployment option was selected, widget Data Source dropdown fields also show Netflow. For details, contact VOSS.

Note

Not all widget options and possible combinations are covered in this document. The widget refresh option can be used to inspect the impact of an option. For assistance in creating widgets, you can also contact VOSS support.

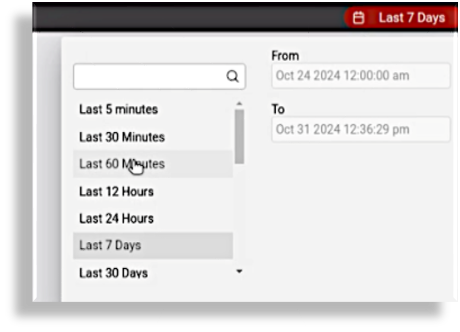

Where a widget resource references data over a time period (such as transactions), the widget interface provides a time picker control to indicate and change the interval for the data shown on the widget.

../../_images/dashboard-widget-time-picker.png

Dashboard sync and refresh#

A real-time sync process is running to maintain Automate and Insights databases in sync. After upgrade to release 24.2, dashboard management is available after 30 minutes, since the scheduled delta-sync process initially carries out a full sync and thereafter an incremental resource sync.

See: Insights Analytics in the Platform Guide.

Important

Dashboard fields showing the item hierarchy (similar to Located At) are updated only when a delta sync runs. For example, if you’ve added users to the system and then moved them to a site, any charts, counters, or tables showing a count of users (at that site or at the system level), will only reflect the correct number of users once a delta sync runs and not when simply refreshing the dashboard or widget in a real-time sync. Until the delta sync runs, the hierarchy fields for these users display on dashboard charts, tables, or widget counters as with no (empty) hierarchy value. See Dashboard sync and refresh.

Manage value mapping#

Automate provides options to allow for custom, alternative field values of resources to be displayed in chart widgets by using the Value Mapping field.

This optional value is applied during the design of a widget and is typically used to present a more user-friendly field value in a chart widget, for example, to map the value of Cisco Codec Mappings originally: 0 to mapped: No Media Established.

The Dashboard Value Mapping page (data model: data/DashboardValueMapping) is available to provider administrators and higher to add, delete and manage mappings. The model contains the default individual mapping value: NO MAPPING.

The design of a mapping allows for the selection of an evaluation operator to apply to the original value as an input condition and then to provide the replaced value in accordance with the evaluation operator test result.

Evaluation operators that can be applied to the original field values are:

Regex
Greater than
Less than
Range (with “Max” and “Min” parameters)
Equals

Note

More than one original field value can be mapped to a single mapping key.

Examples:

If name: Cisco Codec Mappings Equals 0, then the mapping key is No Media Established.
Microsoft 365 service plan mappings by matching Microsoft Entra ID values:
- If string ID Regex (^SPB$) matches, then mapping key is Microsoft 365 Business Premium.
- If string ID Regex (^O365_BUSINESS_PREMIUM$) matches, then mapping key is Microsoft 365 Business Standard.

Manage color mapping#

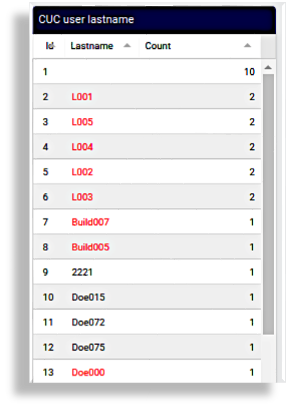

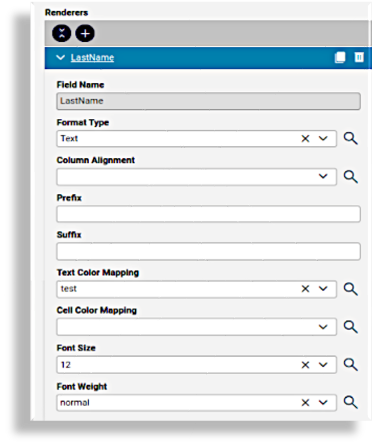

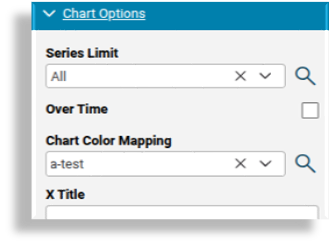

Automate provides options to allow for custom, alternative display colors and icons of Automate Analyze resources to be displayed in table widgets by modifying the Field Type of the resource and by creating instances of a Dashboard Color Mapping. The mapping instance name is then selected in the Text Color Mapping and/or Cell Color Mapping dropdown lists under Table Options > Renderers when desiging a table widget.

The Field Type of the field needs to be set to one of:

Text
Traffic Light: an icon

Refer to the Format Type of the field in the Table topic above.

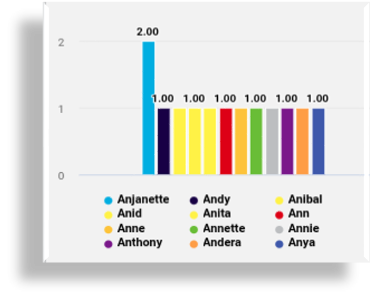

This optional mapped value is applied during the design of a widget and is typically used to present a more user-friendly color or icon in a table widget, for example, to map a range of field values to have a specified color.

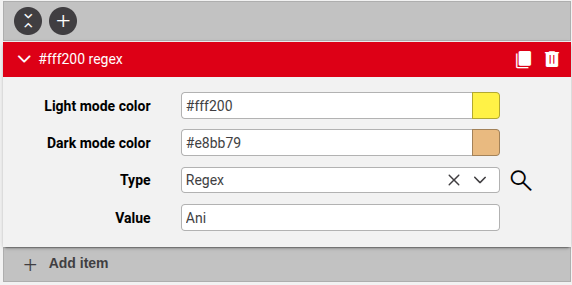

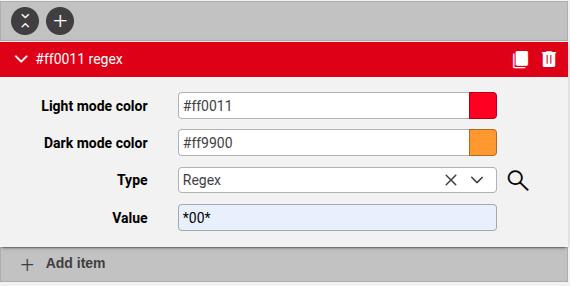

The design of a mapping allows for the selection of an evaluation operator to apply to the original value as an input condition and then to render the replaced color in accordance with the evaluation operator test result.

Evaluation operators that can be applied to the field values are:

Regex : for fields with text or numeric values
Greater than : for fields with numeric values
Less than for fields with numeric values
Range (with “Max” and “Min” parameters): for fields with numeric values

The Dashboard Color Mapping page (data model: data/DashboardColorMapping) or Color Mapping link on the MVS-RoleManagement-Dashboard dashboard is available to provider administrators and higher to add, delete and manage mappings.
