Quick add groups

Tip

Use the Action search to navigate Automate

Overview

A Quick Add Group (QAG) is a collection of configuration templates (CFTs) that configure the user features.

Note

A Quick Add Group is mandatory when adding a user using Quick Add User.

Quick Add Groups allow administrators to group feature and configuration templates for use with Quick Add User. This grouping helps to quickly and easily configure users.

Related topics

• Configuration Templates
• Create a Configuration Template
• Quick Add Group Customization

• Introduction to Microsoft onboarding and offboarding

• Introduction to Microsoft Teams policies

Using CFTs and Quick Add Groups to add users

Example 1 - Two user groups with different phones and services

In this example we’re adding a group of 100 back office users, and a group of 50 sales users. Each group will be assigned a specific phone type, and either has or does not have specific services:

User group?	Using which phones?	And which services?
Back office users	All using 7965 phone with SCCP protocol	No services
Sales users	All using 8865 phone with SCCP protocol	Single number reach service (SNR)

To configure the Example 1 scenario:

1. Create two configuration templates (CFTs):

   • For the back office users, create a CFT for the 7965 phone, with no services.

   • For the sales users, create a CFT for the 8865 phone, with SNR service

2. Create two Quick Add Groups:

   • For the back office users, create a QAG that references the CFT you created for the back office users.

   • For the sales users, create a QAG that references the CFT you created for the sales users.

Example 2 - Users with phone type 6911 and SCCP protocol

In this example we’re adding back office users with a 6911 phone type using SCCP protocol and a voice account.

User group?	Using which phones?	And which services?
Back office users	Phone type 6911 using SCCP protocol	Voice account

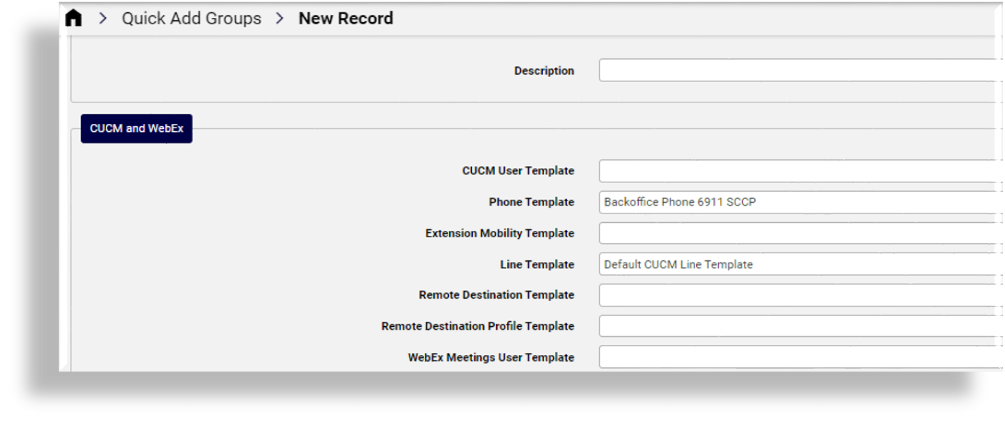

To configure the Example 2 scenario, add the Quick Add Group, and choose these configuration templates from the Cisco UCM and Webex template group on the form:

• Phone Template - select the Backoffice Phone 6911 SCCP CFT from the drop-down of available CFTs

• Line Template - select the Default UCM Line Template CFT from the drop-down of available CFTs (this CFT associates a line with the phone)

Note

You can also use customized CFTs to assign to a Quick Add Group. The custom CFT can be at the same level in the hierarchy as the Quick Add Group, or higher.

Naming convention for Quick Add Groups

The best practice naming convention recommendation for Quick Add Groups may use the following pattern:

<friendly hierarchy name>-QAG-<user type>-<phone-template-name>-[description]

For example, GeoLogic-QAG_BasicUser - 69XX SIP - CallWaiting

Quick Add Groups named macros for Quick Add User

When using Quick Add User (for Microsoft, Cisco, Webex Teams, or Hybrid users) you’ll choose a Quick Add Group that assigns services and sets up the user.

Quick Add Groups contain one or more configuration templates that defines how the user is assigned services. Named macros are used in the configuration templates. A default named macro is associated with each of the following Quick Add User scenarios:

Where used?	Named Macro
Cisco Quick Add User	macro.Default_Quick_Add_Group_Cisco_Subscriber
Microsoft Only Quick Add User	macro.Default_Quick_Add_Group_Microsoft_Subscriber
Webex Teams Calling Only Quick Add User	macro.Default_Quick_Add_Group_Webex_Subscriber
Hybrid Quick Add User	macro.Default_Quick_Add_Group_Hybrid

By default, the values of these macros are set to be the first Quick Add Group found up in the hierarchy:

{{ fn.one data.QuickAddGroups.group_name | | direction:up }}

However, these named macros can be cloned to a hierarchy and modified in order to provide a reference to a specific default Quick Add Group to apply, as required.

Note

See the Advanced Configuration Guide for further details on macros.

When adding users, choose the appropriate Quick Add Group for the user you’re provisioning.

All user services use configuration templates that belong to a Quick Add Group.

Related topics

• Named Macros Overview
• Quick Add Group Functions

Configuration templates for Microsoft in a Quick Add Group

A group of configuration templates are available for Microsoft in the Quick Add Group form.

Note

You can show or hide fields on a Quick Add Group form via a field display policy (FDP).

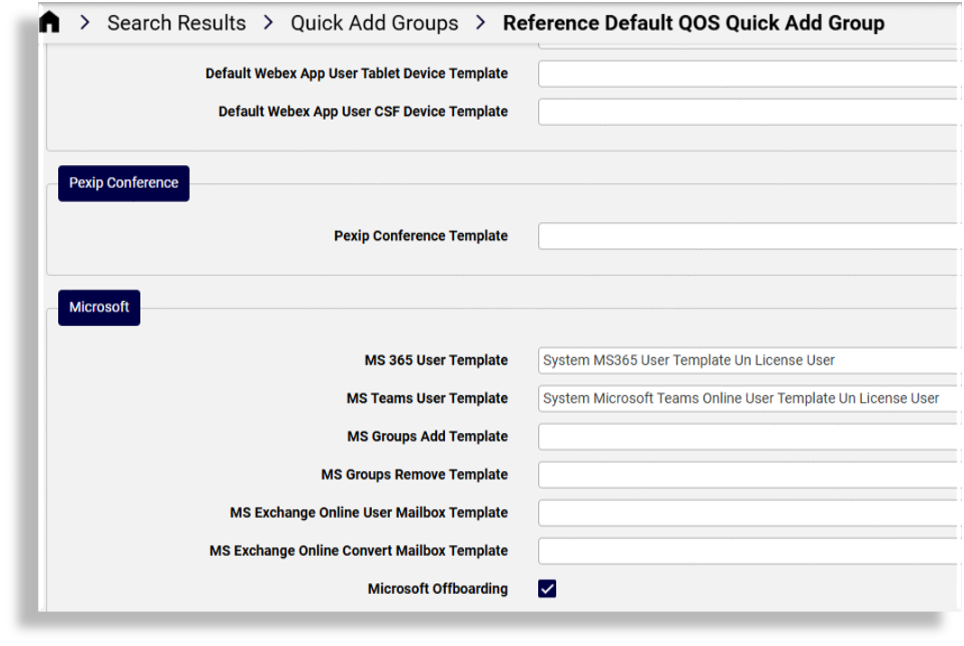

The image displays a Quick Add Group used for Microsoft offboarding, where the Microsoft Offboarding checkbox is configured via a FDP to display on this form, and the setting is enabled, which means that this Quick Add Group is available for selection when running Microsoft offboarding. The flag acts as a filter so that only Quick Add Groups with this flag enabled display on the Microsoft Offboarding page. By default the Microsoft Offboarding checkbox is clear (set to False).

Quick Add Groups designed for Microsoft user offboarding function in a similar way to how configuration templates are configured to drive onboarding. For offboarding however, an admin configures the CFTs to drive offboarding. For example, defining CSOL CFTs to reset policies to some default, to clear Enterprise Voice or to clear the LineUri.

Only QAG’s that are marked as Microsoft Offboarding display in the Quick Offboard User drop down. However, these QAGs are still valid as options on normal Quick Add User forms, so it is recommended that clear and descriptive names are used to identify the purpose of the QAG.

For more information around the system behavior for offboarding Microsoft users, see Introduction to Microsoft onboarding and offboarding

The table describes configuration template options for Microsoft on Quick Add Group forms:

Note

Automate ships with reference and system configuration CFTs that you can clone and customize, if required. The CFTs available for selection in the template fields on Quick Add groups may be defaults or custom CFTs.

CFT Template Type	Description
MS 365 User Template	.
MS Teams User Template	CFTs for MS Teams User Template can define the Microsoft Teams policies to be included.
MS Groups Add Template	CFTs available for MS Groups Add Template and MS Groups Remove Template can be selected to assign or unassign MS 365 group membership to a user when a Quick Add Group with this CFT selected is used during Microsoft Quick Add User. This functionality allows for group licensing, typically used in large enterprises.
MS Groups Remove Template	CFTs available for MS Groups Add Template and MS Groups Remove Template can be selected to assign or unassign MS 365 group membership to a user when a Quick Add Group with this CFT selected is used during Microsoft Quick Add User. This functionality allows for group licensing, typically used in large enterprises.
MS Exchange Online User Mailbox Template	These CFTs are used to set default values and import of the MS Exchange user mailbox. The selected CFT then applies to the Microsoft Quick Add User and User Profile. Automate also ships with a default CFT called Reference MS Exchange Online User Mailbox Template.
MS Exchange Online Convert Mailbox Template	The CFT you choose for MS Exchange Online Convert Mailbox Template is used when the Quick Add Group settings are applied, for example during the Quick Offboard User process if mailbox conversion to a shared mailbox is required. In the default reference CFT for this template type (Reference MS Exchange Online Convert Mailbox Template), the Convert to Type field also allows the conversion of a mailbox to a regular mailbox.

Note

You can also use the Update Group Membership multi-vendor quick action to manage a user’s group membership. See Multi vendor users and Enable multi vendor users.

Related topics

• Licensing users for MS Teams and Teams Phone by group membership

• Microsoft Quick User

• Onboard user

• Offboard user (Microsoft)

• Introduction to Microsoft Teams policies.

• Introduction to Microsoft onboarding and offboarding

• Configuration Templates
• Field Display Policies

Add a Quick Add Group

This procedure adds a Quick Add Group (QAG).

Note

You can also create a new Quick Add Group by cloning (copying) an existing one, then customizing it for your requirements.

1. Log in as Provider, Reseller, Customer, or Site administrator.

2. Go to Quick Add Groups.

3. Click Add, then fill out details for the new Quick Add Group.

   • (Mandatory) At Group Name, fill out a name for the new Quick Add Group.

   • Fill out a description.

   • Choose the required configuration templates to use in this Quick Add Group.

     Note

     Configuration templates (CFTs) available for selection are grouped per vendor scenario. You can choose one or more CFTs for:

     • Cisco UCM and Webex

     • Jabber and Dual-mode

     • CUC (Unity)

     • Webex App

     • Pexip Conference

     • Microsoft

     • Additional services

     If you wish to use the Quick Add Group for Microsoft offboarding, select the Microsoft Offboarding checkbox so that this Quick Add Group is available for selection when running Microsoft offboard. Also ensure that the offboarding configuration template is configured to offboard and de-provision as required, and associate the CFT with this Quick Add Group. See Offboard user (Microsoft)

4. Save your changes.

Related Topics

• Introduction to Microsoft onboarding and offboarding

Delete a Quick Add Group

The default Quick Add Group resides at the sys (system-level) hierarchy node.

Note

A Quick Add Group is required for the Quick Add User function to work.

1. Go to Quick Add Groups.

2. Select the checkbox at the Quick Add User Group you want to delete.

3. Click Delete, then click Yes to confirm.

Quick Add Groups, default model

Default group model for Quick Add User and Add User Wizard functions:

Title	Field Name	Configuration Template Name
Group
Group Name*	group_name	N/A
UCM and WebEx
UCM User Template*	default_cucm_user_template	Default UCM User Template Also used for vendor filtering. [1]
Phone Template	default_cucm_phone_template	Default UCM Phone Template
Extension Mobility Template	default_cucm_device_profile_template	Default UCM Extension Mobility Template
Line Template	default_cucm_line_template	Default UCM Line Template
Remote Destination Template	default_cucm_rd_template	Default UCM Remote Destination Template
Remote Destination Profile Template	default_cucm_rdp_template	Default UCM Remote Destination Profile Template
Webex User Template	default_webex_user_template	Default Webex User Template
Jabber and Dual-Mode
Jabber Android Template	default_cucm_jabber_android_template	Default UCM Jabber Android Template
Jabber CSF Template	default_cucm_jabber_csf_template	Default UCM Jabber CS Template
Jabber iPad Template	default_cucm_jabber_ipad_template	Default UCM Jabber iPad Template
Jabber iPhone Template	default_cucm_jabber_iphone_template	Default UCM Jabber iPhone Template
Carrier Integrated Mobile Device Template	default_cucm_jabber_cim_template	Default Carrier Integrated Mobile Device Template
CTI Remote Device Template	default_cucm_jabber_ctird_template	Default CTI Remote Device Template
CUC(Unity)
CUC User Template	default_cuc_user_template	Default CUC User Template
CUC User Password Template	default_cuc_user_password_template	Default CUC User Password Template. Quick Add User applies this template and overrides CUC user template settings on CUC.
CUC User PIN Template	default_cuc_user_pin_template	Default CUC User PIN Template. Quick Add User applies this template and overrides CUC user template settings on CUC.
WebEx App
Default Webex App User Template	default_spark_user_template	Default Webex App User Template
Default Webex App Calling Template	default_spark_calling_template	Default Webex Teams Calling Settings Template Also used for vendor filtering. [1]
Default Webex App User CTI Device Template	default_spark_user_cti_device_template	Default Webex App User CTI Device Template
Default Webex App User iPhone Device Template	default_spark_user_iphone_device_template	Default Webex App User iPhone Template
Default Webex App User Android Device Template	default_spark_user_android_device_template	Default Webex App User Android Template
Default Webex App User Tablet Device Template	default_spark_user_tablet_device_template	Default Webex App User iPad Template
Default Webex App User CSF Device Template	default_spark_user_csf_device_template	Default Webex App User CSF Template
Default Webex App Wholesale for wholesale user	default_webex_app_wholesale_template	E.g. Default Webex Wholesale user - webex_calling for webex calling package. Any package can be set and only wholesale package templates are available to be set. A template must be set for wholesale customers.
Pexip Conference
Pexip Conference Template	default_pexip_conference_template	Reference Pexip Conference Template
Microsoft
MS 0365 User Template		Also used for vendor filtering. [1]
MS Teams User Template		Also used for vendor filtering. [1]
MS Groups Add Template		Add one or more entries to the Group list to provide group membership to a user. [2]
MS Groups Remove Template		Add one or more entries to the Group list to remove group membership from a user. [2]
MS Exchange Online User Mailbox Template		Used for default MS Exchange user mailbox settings.
Additional Services
Phone User Template

[1] (1,2,3,4)

See: Quick Add Groups and vendor filtering.

[2] (1,2)

See: Licensing Users for MS Teams and Teams Phone by Group Membership.

Fields marked with * are mandatory.

Quick Add Groups and vendor filtering

Quick Add Group selection in the Automate portal takes place for Quick Add User management. In these cases, the list of available Quick Add Groups to select will be filtered in accordance with populated entries in the Quick Add Groups themselves.

The following list shows the corresponding Quick Add Groups fields to allow filtering for each activity:

• Cisco Quick Add User: UCM User Template

• WebexApp Quick Add User: Default Webex App Calling Template

• Microsoft Quick Add User: MS 365 User Template and MS Teams User Template
