Workspaces#

Overview#

Webex App workspaces are synced in from a Webex Control Hub.

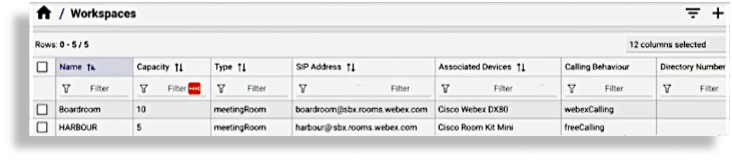

../../_images/webex-workspaces.png

Details synced in includes calling behavior and calendar settings, as well as phone numbers and device information associated with the workspace.

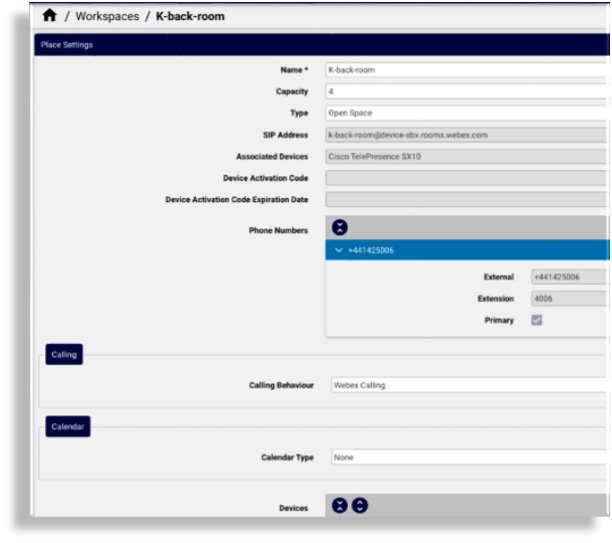

../../_images/webex-workspaces-detail.png

When a sync occurs, existing numbers in the number inventory will also updated with workspace details, for example in the corresponding Usage, Description, and Vendor fields.

You can add various types of Webex App workspaces in Automate, for example, meeting rooms or open spaces.

Add a Webex App Workspace#

This procedure adds a Webex App workspace, and optionally, adds devices.

Note

You can add devices when adding a new workspace or when updating an existing workspace.

  1. Log in to the Admin Portal as provider admin, then use the Action search to locate the Webex App Workspaces list view.

  2. Click the Plus icon (+) to add a new workspace, then choose the relevant site.

    Note

    Workspaces are created at site level.

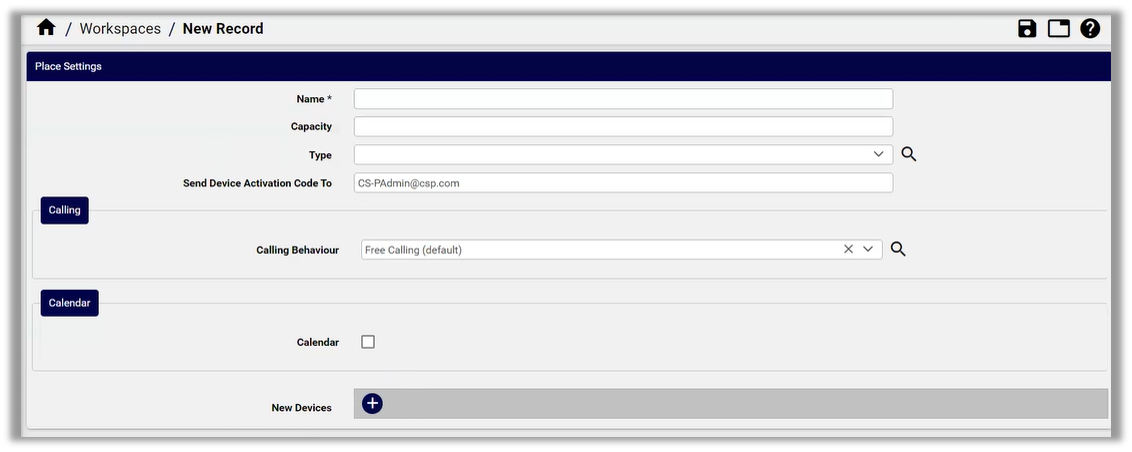

    ../../_images/workspaces-add.png

  3. Fill out details for the new workspace:

    • Add a workspace name.

    • Select capacity (how many persons the workspace is suitable for).

    • Select the workspace type for example, desk, focus, huddle, meeting room, or open space.

  4. In the Send Device Activation Code To field, fill out the email address(es) where the device type code is sent.

    Note

    This code is unique to this created workspace and is entered into the device itself.

    Once the code is created, the Device Activation Code (read only) value is returned and shown, as well as its Device Activation Code Expiration Date.

    An Automate system schedule checks the expiration date and generates a new code. The SIP Address of the workspace is also shown.

  5. At Calling Behavior, select the workspace calling behavior:

    • No calling

    • Free calling (default)

    • Webex Calling

    • Third-party SIP URI

    • Webex Edge For Devices

  6. If you’ve chosen Webex Calling as the calling behavior, at Webex Calling Settings, fill out a phone number and extension.

    Note

    Webex Calling settings display on the page only when Webex Calling is selected.

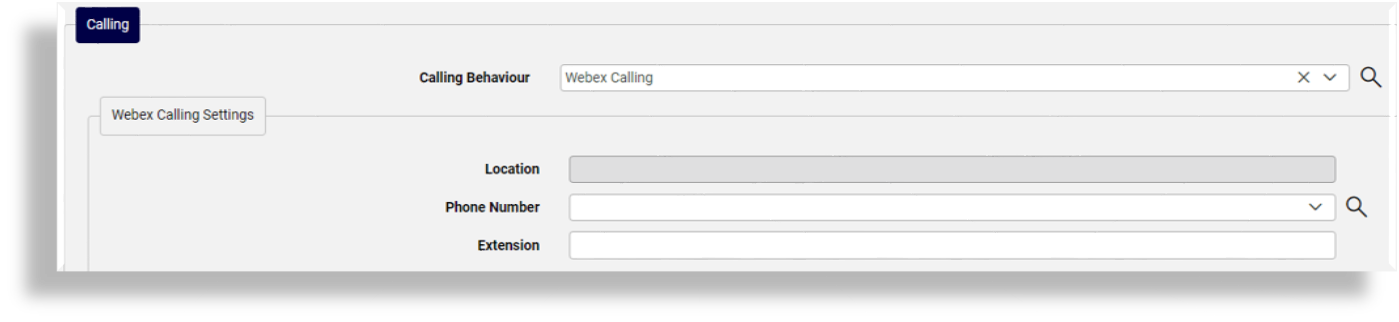

    ../../_images/webex-calling-settings.png

  7. At Calendar Type, optionally, select a calendar provider (these options are those available from the Scheduling section on the Webex Control Hub - for example, Microsoft Exchange / Office 365, or Google Calendar). If you choose a calendar type, you will need to fill out a workspace email address.

  8. At New Devices, add one or more new devices to the workspace. This allows for activating devices in a workspace using the RoomOS driver:

    Note

    Existing devices in the workspace are shown in the Devices group, while all devices display via the Devices menu.

    For each new device:

    • Add the current IP Address for the Webex device.

      Note

      The configured IP address must be reachable by all of the Automate unified nodes via HTTPS using port 443.

    • Select the profile to use for configuring the device.

      Note

      The profile includes the required parameters for the configuration. Profiles are managed on the Webex App RoomOS Device Configuration Profiles page.

    • Add the device username and password, if needed.

      Note

      You can add a device with the default username, admin, and no password. However, it is recommended that you add a second user on the device since, when the device registers with the Webex Control Hub, by default, Webex Control Hub disables the default username (admin) as part of the registration process, which prevents you from logging back in to the device using its IP address, unless you’ve added a second user. For example, without the second user, reset via the Admin Portal will not work because you will need to provide a username and password. If the default username is disabled, go to the Webex Control Hub, locate your device, and access the device via the UI.

  9. Save your changes. Wait for the transaction to complete.

    The new workspace and devices are registered with Webex Control Hub, which assigns an activation code. The activation code is used to make a second connection to the device local IP address to run the activation step with the configuration you specified in the configuration blocks.

    In the Admin Portal, you can view the new workspace in the the Workspaces list view. To view new devices, use the Action search to locate the Devices page.
