Resources Overview

The Arbitrator API is broken up into the resources below. Each resource represents an object in the Arbitrator system. A resource will have associated data and a set of methods in which the user may operate on it.

Resource	Description
/ciscocdr	This resource will return data associated with Cisco CDR and CMR files. The API will return a running total of various statistics associated with Cisco’s call records. Note As of release 22.2, only one optional parameter: cm_ip (Call Manager IP) is supported.
/system	This resource will return data about the Arbitrator system in general.

HTTP Post to Arbitrator

The Arbitrator system API also provides a route that allows for messages to be posted to it using HTTP POST to the resource /syslog.

This makes it possible for alarms outside the Arbitrator system to be enabled.

The curl syntax for this action is as follows:

curl  --insecure -X POST https://<arbitrator-host>/api/syslog -d "test"

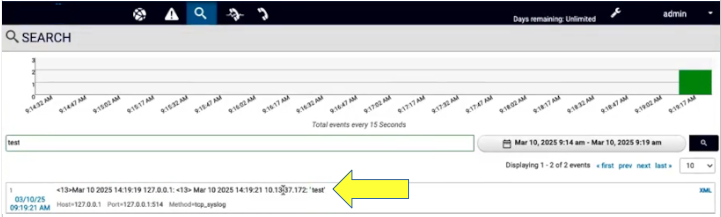

The message can then be seen as an event:
